SPST Off-Mom keypad switch with a 6mm width and length, featuring a 250gf operating force and 0.25mm switch travel. This non-illuminated or illuminated component offers a 50mA contact current rating with silver-plated bronze contacts and a 12V DC voltage rating. Designed for through-hole mounting with PC pin termination, it boasts an electrical and mechanical life of 100,000 cycles and operates within a -20°C to 70°C temperature range.
Voltage Rating12V
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1105LF250Q technical specifications.
General
Actuator Length
13.4mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Color
Black
Contact Current Rating
50mA
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
50V
Mechanical Life
100000Cycles
Mount
Through Hole
Operating Force
250gf
Orientation
Straight
Package Quantity
750
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TL1105
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating
12V
DC Rated Voltage
12V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105LF250Q Datasheet
Download the complete datasheet for E-Switch TL1105LF250Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

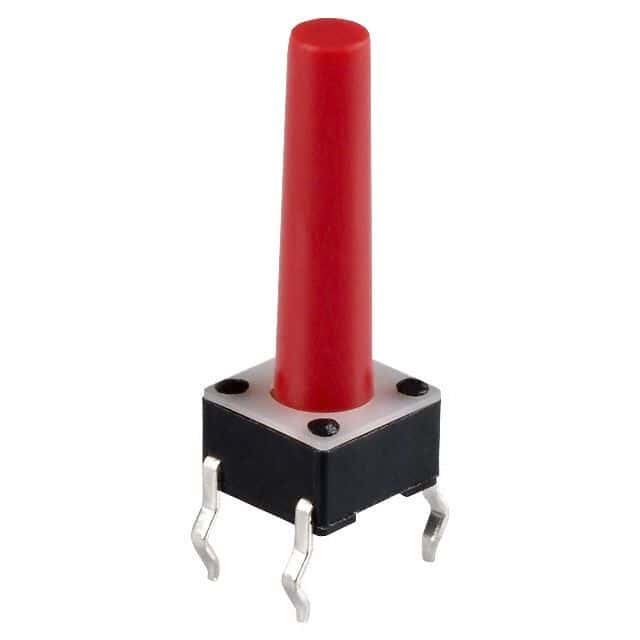

Product Images
