SPST momentary keypad switch featuring a 12VDC, 50mA rating and 0.25mm travel. This non-illuminated or illuminated switch offers a 160gf operating force with a 10mm nylon actuator. Designed for through-hole mounting with straight PC pin termination, it boasts an electrical and mechanical life of 100,000 cycles. Operating within a -20°C to 70°C temperature range, this RoHS compliant component is supplied in bulk packaging.
Storage6mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1105SPF160Q technical specifications.
General
Actuator Length
10mm
Actuator Material
Nylon, Polyamide
Color
Black
Contact Current Rating
50mA
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
12V
Mount
Through Hole
Operating Force
160gf
Orientation
Straight
Package Quantity
750
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TL1105
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105SPF160Q Datasheet
Download the complete datasheet for E-Switch TL1105SPF160Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

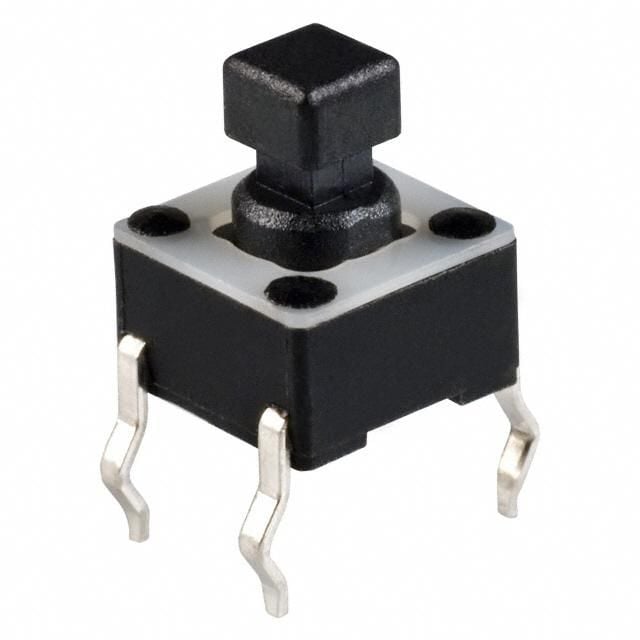

Product Images
