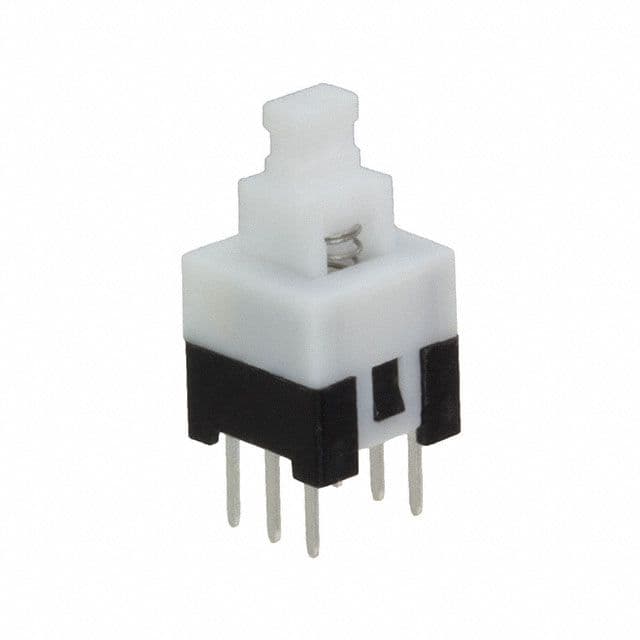

The TL2230OAF140 is a DPDT on-mom silver contact switch from E-Switch. It has a current rating of 100mA and a voltage rating of 30V DC and 500V AC. This switch is lead-free and RoHS compliant, packaged in bulk. It features a throw configuration of DPDT and a termination of PC pin.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the E-Switch TL2230OAF140 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Silver |
| Current Rating | 100mA |
| Electrical Life | 10000Cycles |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | TL2230 |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 500V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
Download the complete datasheet for E-Switch TL2230OAF140 to view detailed technical specifications.
