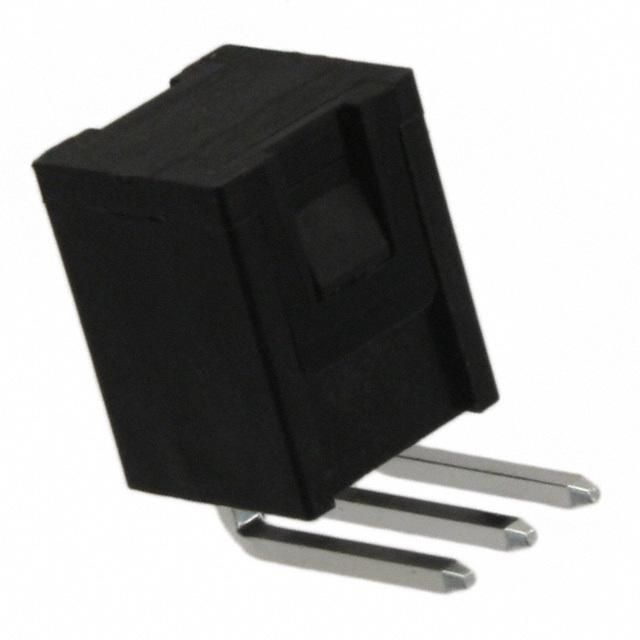

Right-angle, through-hole mounted tilt switch with SPST throw configuration. Features a 20mA output current and a 24V switching voltage rating for both AC and DC applications. Operates reliably within a temperature range of -25°C to 70°C, offering an electrical life of 1,000,000 cycles. Body dimensions are 6.5mm in length and height, with a depth of 9.85mm.
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TM1000Q technical specifications.
General
Body Depth
9.85mm
Body Height
6.5mm
Body Length
6.5mm
Electrical Life
1000000Cycles
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
24V
Max Voltage Rating (DC)
24V
Mount
Through Hole
Orientation
Right Angle
Output Current
20mA
Packaging
Cut Tape
Reach SVHC Compliant
No
Switching Voltage
24V
Termination
PC Pins
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
E-Switch TM1000Q Datasheet
Download the complete datasheet for E-Switch TM1000Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
