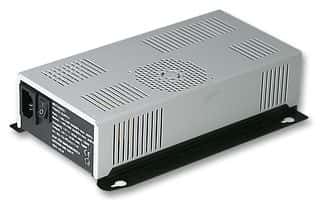

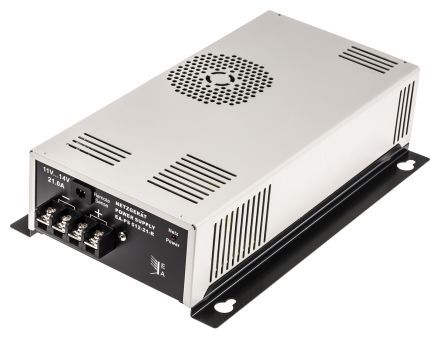

The EA-PS512-21R is a general purpose power supply with a maximum input voltage of 264V and a minimum input voltage of 90V. It operates within a temperature range of 0-40°C and provides a single output of 14V with a maximum current of 21A. The power supply is mounted via screws and has a weight of 1.75kg. It is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the EA Elektro-Automatik EA-PS512-21R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
EA Elektro-Automatik EA-PS512-21R technical specifications.
| Height | 58mm |
| Length | 226mm |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 21A |
| Max Output Voltage | 14V |
| Min Output Voltage | 11V |
| Max Supply Voltage (AC) | 264V |
| Min Supply Voltage (AC) | 90V |
| Mount | Screw |
| Number of Outputs | 1 |
| Operating Supply Voltage | 264V |
| Output Connector | Screw Terminal |
| Output Current | 21A |
| Output Voltage | 14V |
| Reach SVHC Compliant | No |
| Resistance | -21R |
| Weight | 1.75kg |
| Width | 110mm |
| RoHS | Compliant |
Download the complete datasheet for EA Elektro-Automatik EA-PS512-21R to view detailed technical specifications.
