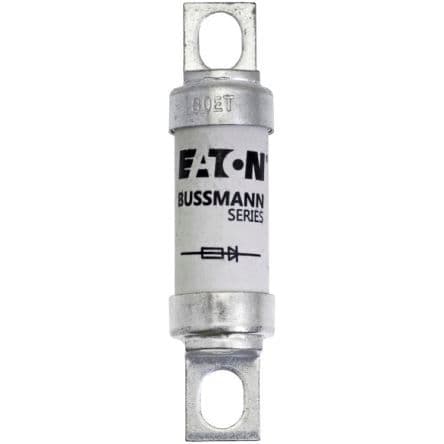

The Eaton 80ET is a 80A overcurrent protection device with a maximum power dissipation of 18W and a maximum voltage rating of 690V AC. It is designed for bolt mount applications and has a diameter of 19.1mm. The fuse is RoHS compliant and available in a bulk packaging with 10 pieces per package. It is suitable for use in electrical circuits requiring protection against overcurrent conditions.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton 80ET datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CE, UR |
| Current Rating | 80A |
| Diameter | 19.1mm |
| Fuse Current | 80A |
| Fuse Size | 48 X 17.1mm |
| Height | 19.1mm |
| Length | 1.89inch |
| Max Power Dissipation | 18W |
| Max Voltage Rating (AC) | 690V |
| Mount | Bolt |
| Package Quantity | 10 |
| Packaging | Bulk |
| Power Dissipation | 18W |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ET |
| Type | Electrical |
| Voltage Rating | 690V |
| Voltage Rating (AC) | 690V |
| DC Rated Voltage | 500V |
| Weight | 1.44oz |
| Width | 12.7mm |
| RoHS | Compliant |
