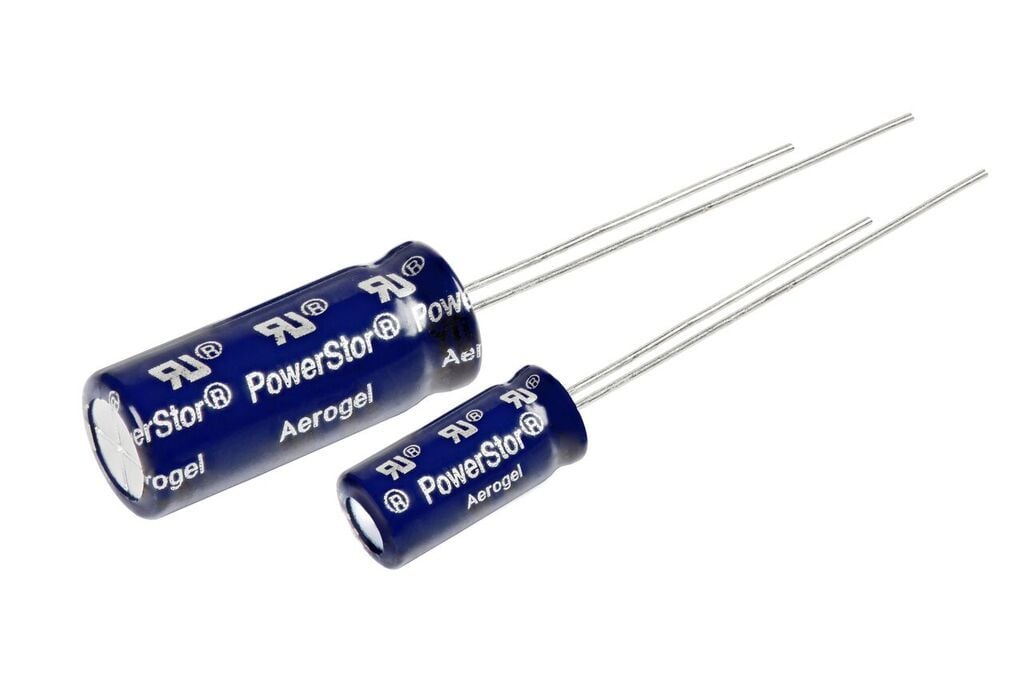

High voltage electric double layer capacitor, 2.5V DC rated voltage, offering a substantial 2.2 Farads capacitance with a wide tolerance of 80%. Features a radial leaded, through-hole mount package with a 3.5mm lead pitch and 8mm diameter. Designed for operation between -25°C and 70°C, this capacitor has an ESR of 200mR and a leakage current of 9uA. It is constructed for vertical orientation and has a rated life of 1000 hours.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton B0820-2R5225-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 2.2F |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 200mR |
| Height - Seated (Max) | 0.827inch |
| Lead Diameter | 0.5mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 9uA |
| Length | 20mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Orientation | Vertical |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | PowerStor B |
| Termination | Radial |
| Tolerance | 80% |
| Voltage Rating | 2.5V |
| DC Rated Voltage | 2.5V |
| Weight | 0.064oz |
| RoHS | Not CompliantNo |
