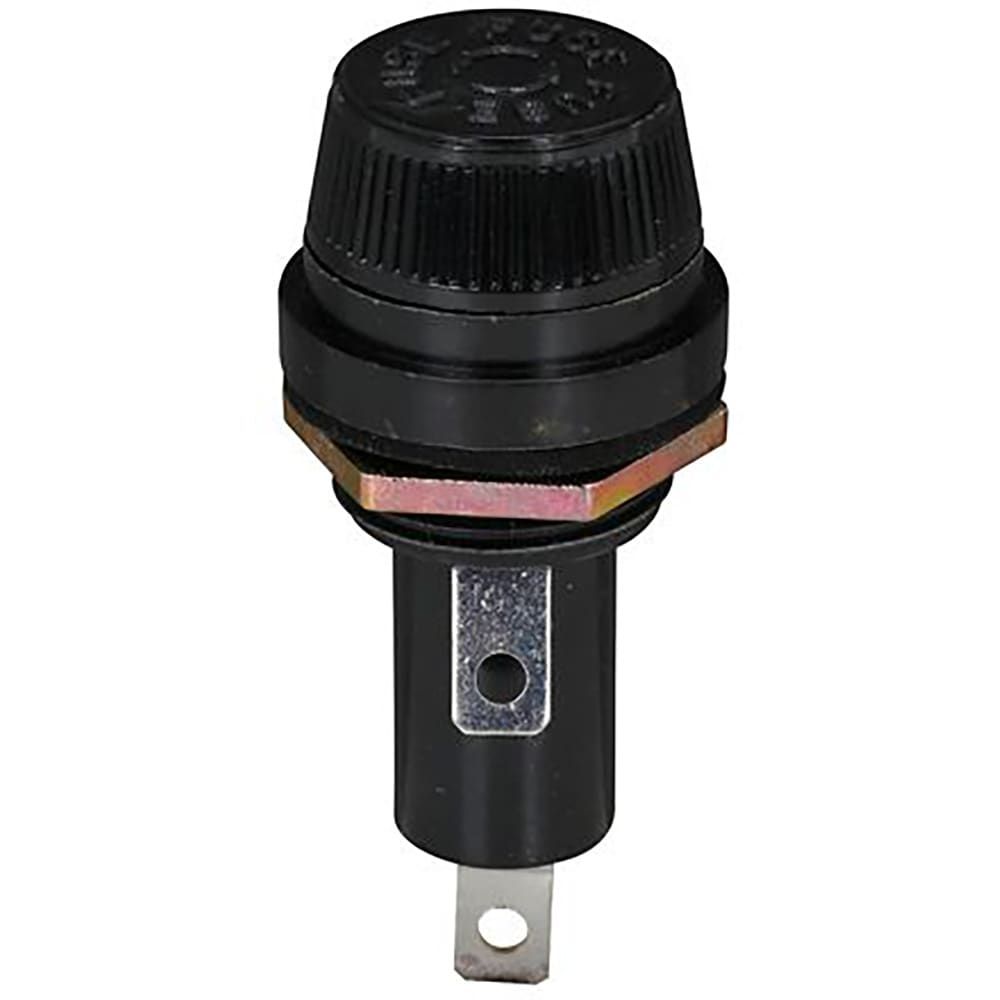

This 600V 15A panel mount fuse features a 13/32" diameter by 1-1/2" length and is illuminated for easy visibility. It is designed for use in high-voltage applications and is available in a package quantity of 50. The fuse is not radiation hardened and has a weight of 1.04 ounces.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton BK/HPG-EE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Current Rating | 15A |
| Fuse Size | 13/32" Dia x 1-1/2" L (10.41mm x 38.1mm) |
| Illumination Type | Illuminated |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Orientation | Horizontal |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Series | HPG |
| Termination | Quick Connect |
| Voltage | 600V |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| Weight | 1.04oz |
| RoHS | Compliant |
