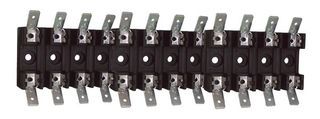

Single-pole, single-circuit fuse block for 1/4" x 1-1/4" fuses, featuring quick connect termination. Rated for 300V AC/DC and 20A, with a maximum operating temperature of 130°C. Constructed from black thermoplastic with bronze contacts plated in tin and lead, it boasts a UL94 V-0 flammability rating and UL/CSA approvals. Designed for chassis mounting via bolt, this illuminated fuse block operates between 0°C and 130°C.
Voltage300V
Voltage Rating300V
Current Rating20A
MountingChassis Mount, Bolt
Quick Jump:
Technical Specifications
Eaton BK/S-8201-1-R technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Color
Black
Contact Material
Bronze
Contact Plating
Tin, Lead
Current Rating
20A
Depth
54.8mm
Flammability Rating
UL94 V-0
Fuse Current
20A
Fuse Size
3AG, 1-1/4" L x 1/4" Dia (31.8mm x 6.35mm)
Illumination Type
Illuminated
Lead Free
Lead Free
Length
12.7mm
Material
Thermoplastic
Max Operating Temperature
130°C
Min Operating Temperature
0°C
Mount
Chassis Mount, Bolt
Number of Circuits
1
Number of Poles
1
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Series
S-8000
Termination
Quick Connect
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.208oz
Compliance
RoHS
Compliant
