General purpose radial inductor featuring 10µH inductance with a 20% tolerance. This unshielded, powdered iron-core component offers a 4.7A current rating and 4.5A saturation current. It operates within a temperature range of -40°C to 75°C and has a low DC resistance of 18.3mΩ. Designed for through-hole mounting, it comes in a radial package with an 11mm lead pitch.
PackageRadial
Current Rating4.7A
MountingThrough Hole
Inductance10uH
Quick Jump:
Technical Specifications
Eaton CTX10-2-52LP-R technical specifications.
General
| Package/Case | Radial |
| Core Material | Ferrite |
| Current Rating | 4.7A |
| DC Current | 4.7A |
| DC Resistance (DCR) | 18.3mR |
| Diameter | 12.7mm |
| Height | 7.8mm |
| Height - Seated (Max) | 0.307inch |
| Inductance | 10uH |
| Lead Free | Lead Free |
| Lead Pitch | 11mm |
| Lead/Base Style | Radial |
| Length | 12.7mm |
| Max DC Current | 4.7A |
| Max Operating Temperature | 75°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 275 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Saturation Current | 4.5A |
| Series | CTX |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.016oz |
Compliance
| RoHS | Compliant |
Datasheet
Eaton CTX10-2-52LP-R Datasheet
Download the complete datasheet for Eaton CTX10-2-52LP-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

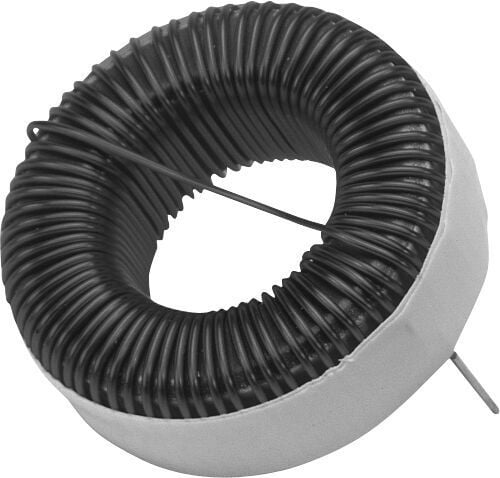

Product Images
