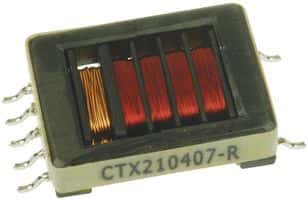

Power transformer featuring a 1:86 turns ratio, 4W power rating, and 7 terminals. This surface mount component utilizes a ferrite core and offers 27uH inductance with a 7mA current rating. Designed with gull wing leads for SMD termination, it operates within a 0°C to 70°C temperature range and boasts a 1.34kV output voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton CTX210407-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Core Material | Ferrite |
| Current Rating | 7mA |
| DC Resistance (DCR) | 160mR |
| Depth | 26mm |
| Height | 5.5mm |
| Height - Seated (Max) | 5.5mm |
| Inductance | 27uH |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 16.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Output Current | 10mA |
| Output Voltage | 1.34kV |
| Package Quantity | 70 |
| Packaging | Bulk |
| Primary Winding(s) | Dual |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Current | 7mA |
| Secondary Winding(s) | Single |
| Termination | SMD/SMT |
| Transformer Type | INVERTER TRANSFORMER |
| Turns Ratio | 1:86 |
| Weight | 0.192oz |
| Width | 16.5mm |
| RoHS | Compliant |
Download the complete datasheet for Eaton CTX210407-R to view detailed technical specifications.
