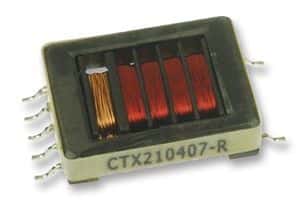

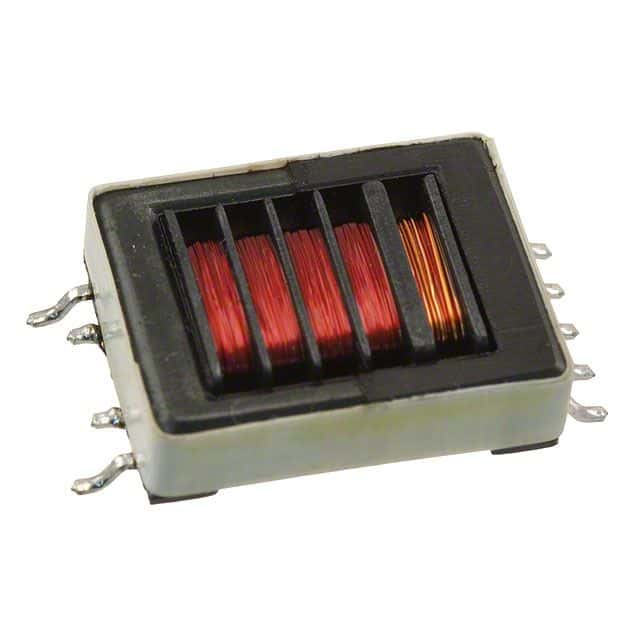

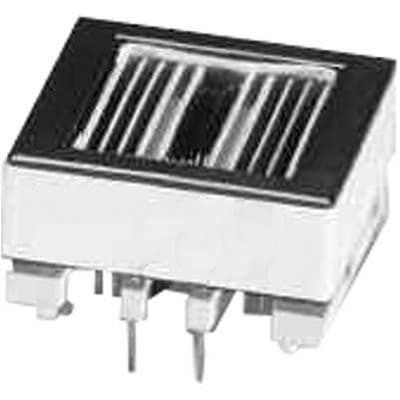

Inverter power transformer featuring a 1:67 turns ratio, 6W power rating, and 7 terminal gull wing SMD mounting. This surface mount component operates at 80kHz with an inductance of 44uH and a DC resistance of 160mR. It supports dual primary and single secondary windings, delivering an output voltage of 1.34kV with an output current of 10mA. Designed for PCB mounting, it offers a current rating of 11mA and is RoHS compliant, operating within a temperature range of 0°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton CTX210605-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 11mA |
| DC Resistance (DCR) | 160mR |
| Depth | 26mm |
| Frequency | 80kHz |
| Height | 7.1mm |
| Height - Seated (Max) | 7.1mm |
| Inductance | 44uH |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 16.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount, PCB |
| Output Current | 10mA |
| Output Voltage | 1.34kV |
| Package Quantity | 70 |
| Packaging | Bulk |
| Primary Winding(s) | Dual |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Current | 11mA |
| Secondary Winding(s) | Single |
| Termination | SMD/SMT |
| Transformer Type | INVERTER TRANSFORMER |
| Turns Ratio | 1:67 |
| Weight | 0.224oz |
| Width | 16.5mm |
| RoHS | Compliant |
