Surface mount general purpose inductor with 10µH inductance and 30% tolerance. Features a ferrite core, shielded construction, and a 3.8A current rating. Operating temperature range is -40°C to 125°C. DC resistance is 35mΩ.
PackageNonstandard
Current Rating3.8A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Eaton DR1040-100-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
3.8A
DC Current
3.8A
DC Resistance (DCR)
35mR
Depth
10.3mm
Height
4mm
Height - Seated (Max)
0.157inch
Inductance
10uH
Inductance Tolerance
30%
Lead Free
Lead Free
Lead Pitch
7.7mm
Length
10.5mm
Max DC Current
3.8A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
850
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
3.8A
Reach SVHC Compliant
No
RMS Current (Irms)
3.8A
RoHS Compliant
Yes
Saturation Current
4.4A
Self Resonant Frequency
1MHz
Series
DR1040
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Weight
0.17637oz
Width
0.405inch
Compliance
RoHS
Compliant
Datasheet
Eaton DR1040-100-R Datasheet
Download the complete datasheet for Eaton DR1040-100-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

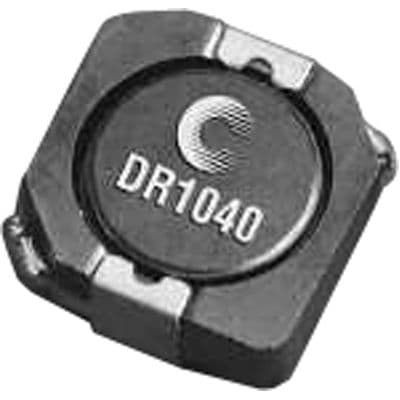

Product Images
