Surface mount fixed inductor featuring a shielded drum core construction with ferrite material. Offers 47µH inductance with a 20% tolerance, tested at 100kHz. Rated for 2.2A DC current with a DC resistance of 149.6mΩ and a saturation current of 2.63A. Operates within a temperature range of -40°C to 125°C and is supplied on tape and reel.
PackageNonstandard
Current Rating2.2A
MountingSurface Mount
Inductance47uH
Quick Jump:
Technical Specifications
Eaton DR124-470-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.2A |
| DC Current | 2.2A |
| DC Resistance (DCR) | 149.6mR |
| Depth | 12.3mm |
| Height | 4.5mm |
| Height - Seated (Max) | 0.177inch |
| Inductance | 47uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max DC Current | 2.63A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Rated Current-Max | 2.2A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.2A |
| RoHS Compliant | Yes |
| Saturation Current | 2.63A |
| Self Resonant Frequency | 1MHz |
| Series | DR124 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.112oz |
| Width | 0.492inch |
Compliance
| RoHS | Compliant |
Datasheet
Eaton DR124-470-R Datasheet
Download the complete datasheet for Eaton DR124-470-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

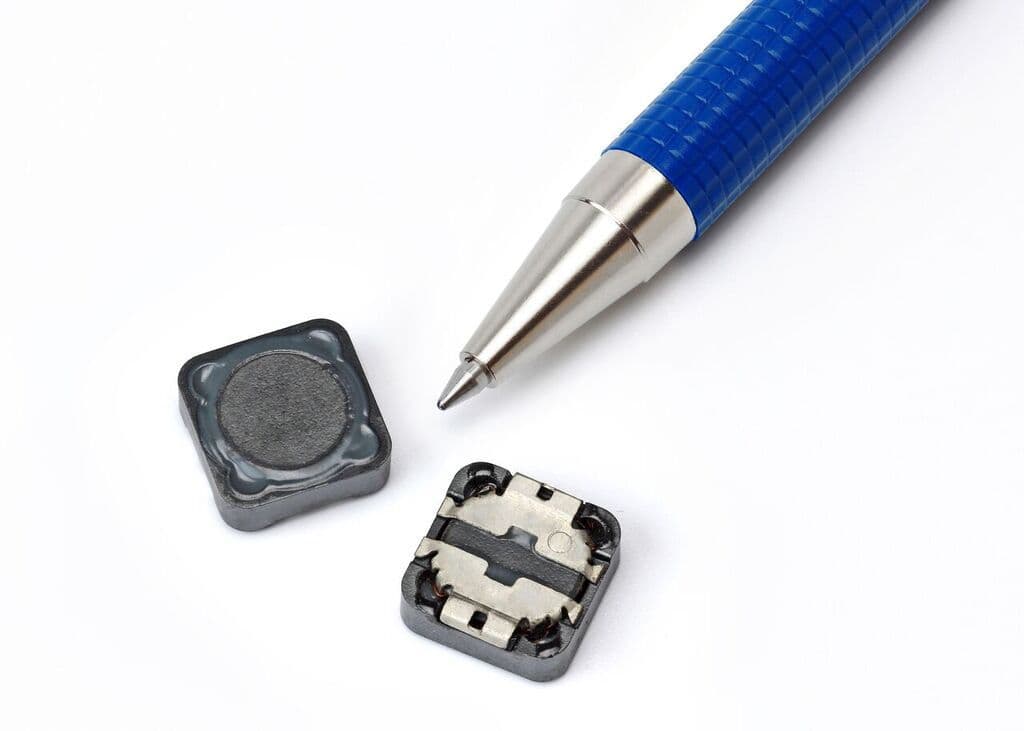

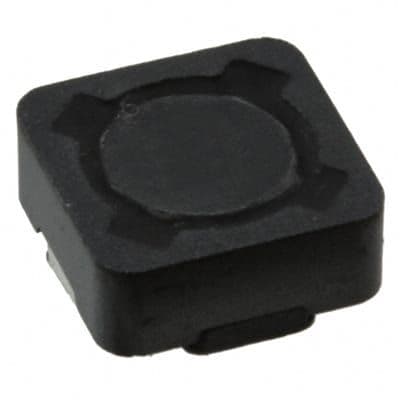

Product Images
