Shielded, ferrite-core power inductor with 10µH inductance and 20% tolerance. Features a 5.35A current rating, 18.9mΩ DC resistance, and 7.17A saturation current. Operates from -40°C to 125°C and is surface-mount compatible. Dimensions are 12.5mm length, 12.5mm depth, and 6mm height. RoHS compliant and supplied on tape and reel.
PackageNonstandard
Current Rating5.35A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Eaton DR125-100-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 5.35A |
| DC Current | 5.35A |
| DC Resistance (DCR) | 18.9mR |
| Depth | 12.5mm |
| Height | 6mm |
| Height - Seated (Max) | 0.236inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Inductor Type | POWER INDUCTOR |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max DC Current | 7.17A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 5.35A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 5.35A |
| RoHS Compliant | Yes |
| Saturation Current | 7.17A |
| Self Resonant Frequency | 100kHz |
| Series | DR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.144oz |
| Width | 0.492inch |
Compliance
| RoHS | Compliant |
Datasheet
Eaton DR125-100-R Datasheet
Download the complete datasheet for Eaton DR125-100-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

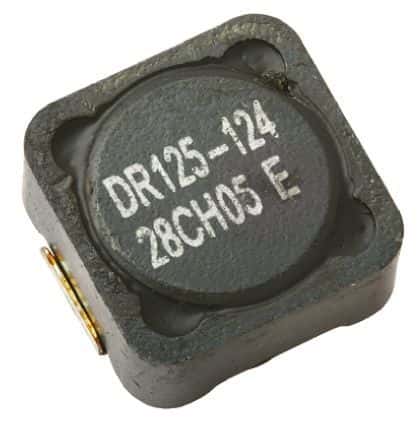

Product Images
