Surface mount fixed inductor featuring a shielded drum core construction with ferrite material. Offers 820µH inductance with a 20% tolerance, tested at 100kHz. Rated for 600mA continuous current and 770mA saturation current, with a DC resistance of 1.49Ω. Operates across a temperature range of -40°C to 125°C. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating600mA
MountingSurface Mount
Inductance820uH
Quick Jump:
Technical Specifications
Eaton DR125-821-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 600mA |
| DC Resistance (DCR) | 1.49R |
| Depth | 12.5mm |
| Height | 6mm |
| Height - Seated (Max) | 0.236inch |
| Inductance | 820uH |
| Lead Free | Lead Free |
| Length | 0.492inch |
| Max DC Current | 770mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Rated Current-Max | 600mA |
| Saturation Current | 770mA |
| Series | DR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.016oz |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Eaton DR125-821-R Datasheet
Download the complete datasheet for Eaton DR125-821-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

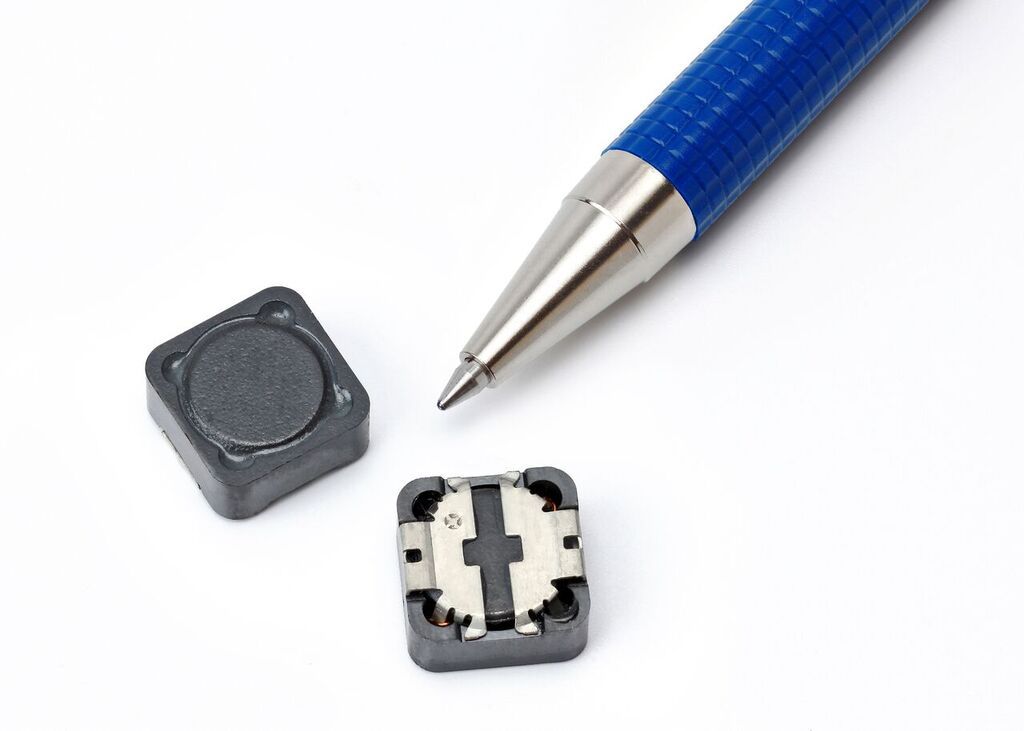

Product Images
