Shielded, ferrite-core power inductor with 10µH inductance and 20% tolerance. Features a 6.04A rated current, 11.2A saturation current, and 17.2mΩ DC resistance. Operates from -40°C to 125°C and mounts via SMD/SMT. Packaged in tape and reel.
PackageNonstandard
Current Rating6.04A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Eaton DR127-100-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
6.04A
DC Resistance (DCR)
17.2mR
Depth
12.5mm
Height
8mm
Height - Seated (Max)
0.315inch
Inductance
10uH
Inductance Tolerance
20%
Inductor Type
POWER INDUCTOR
Lead Free
Lead Free
Length
12.5mm
Max DC Current
11.2A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
350
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
6.04A
Reach SVHC Compliant
No
RMS Current (Irms)
6.04A
RoHS Compliant
Yes
Saturation Current
11.2A
Self Resonant Frequency
100kHz
Series
DR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.208oz
Width
0.492inch
Compliance
RoHS
Compliant
Datasheet
Eaton DR127-100-R Datasheet
Download the complete datasheet for Eaton DR127-100-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

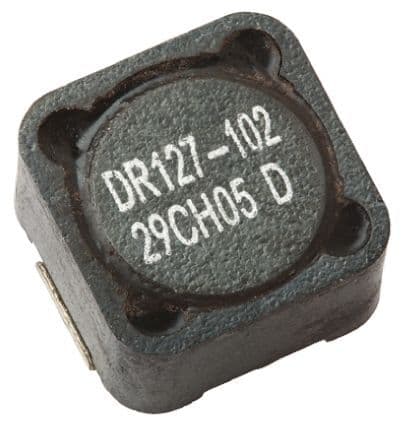

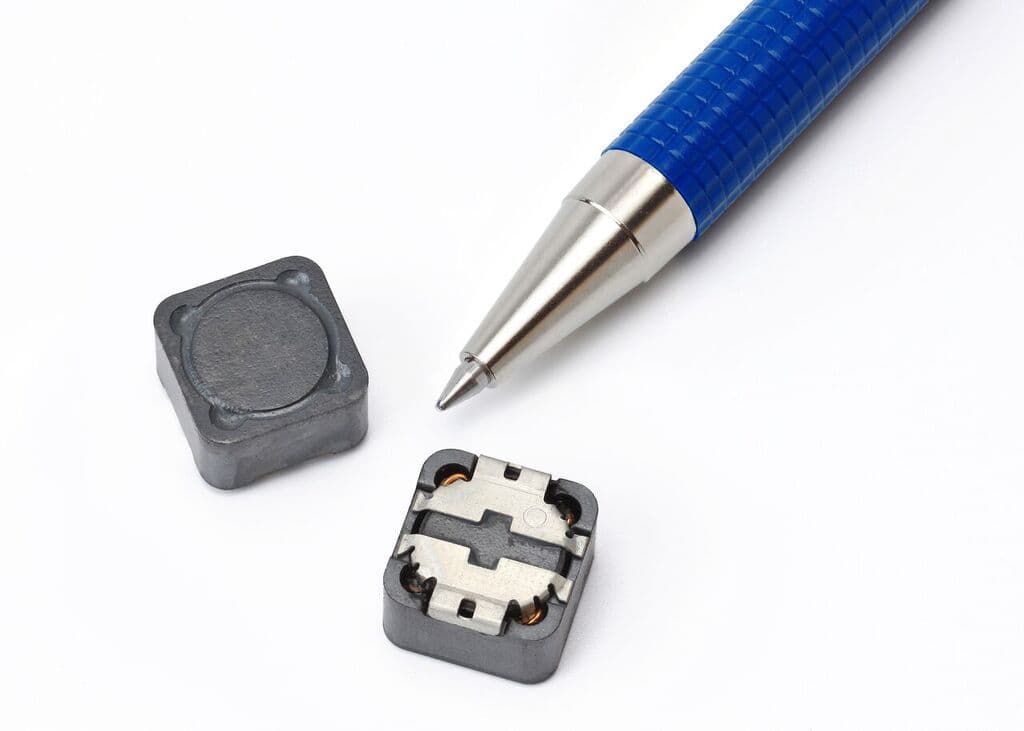

Product Images
