Surface mount general purpose power inductor with 22µH inductance and 20% tolerance. Features a ferrite core, 4A rated current, and 7.57A saturation current. Operating temperature range is -40°C to 125°C. Shielded construction with SMD/SMT termination.
PackageNonstandard
Current Rating4A
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Eaton DR127-220-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
4A
DC Current
4A
DC Resistance (DCR)
39.1mR
Depth
12.5mm
Height
8mm
Height - Seated (Max)
0.315inch
Inductance
22uH
Inductance Tolerance
20%
Inductor Type
POWER
Lead Free
Lead Free
Length
12.5mm
Max DC Current
7.57A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
350
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
4A
Reach SVHC Compliant
No
RMS Current (Irms)
4A
RoHS Compliant
Yes
Saturation Current
7.57A
Self Resonant Frequency
100kHz
Series
DR
Series Resistance
39.1mR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.224oz
Width
0.492inch
Compliance
RoHS
Compliant
Datasheet
Eaton DR127-220-R Datasheet
Download the complete datasheet for Eaton DR127-220-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

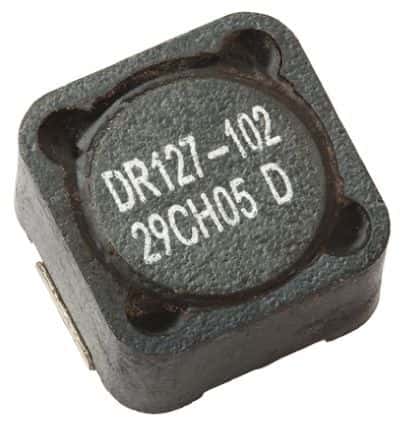

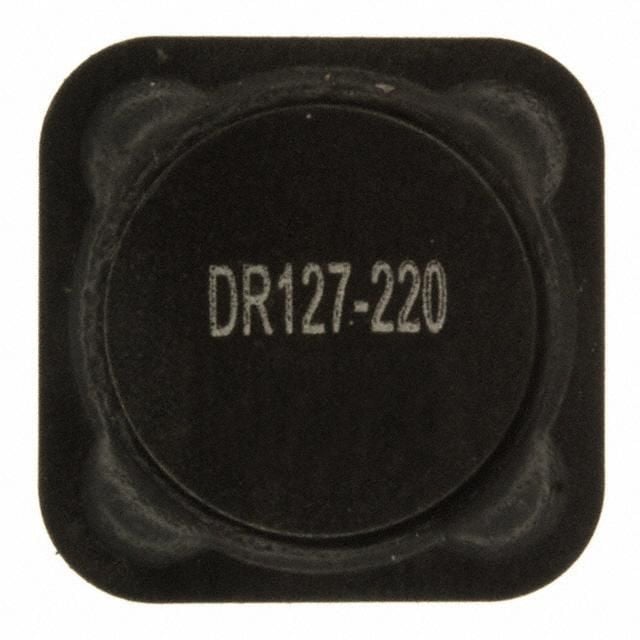

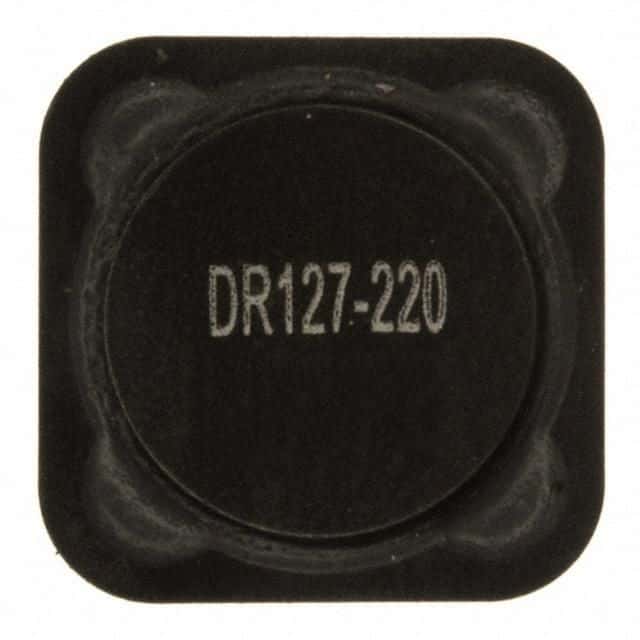

Product Images
