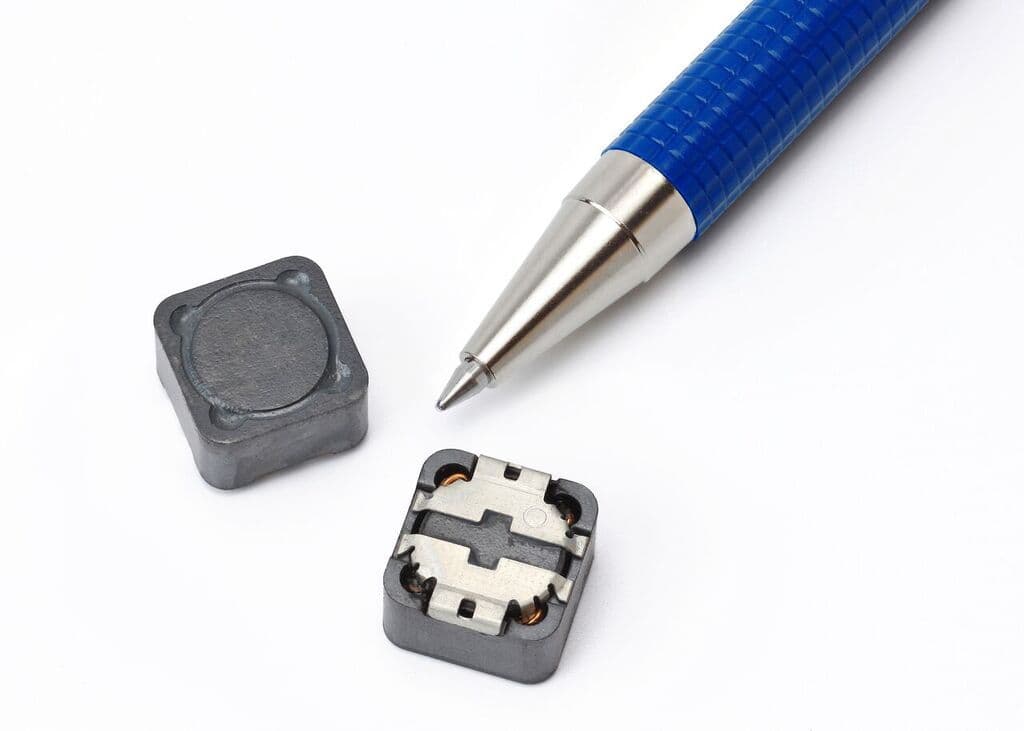

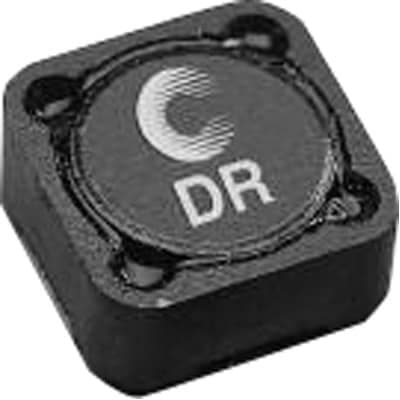

Surface mount fixed inductor featuring a shielded drum core with 820µH inductance and 20% tolerance, tested at 100kHz. This component offers a maximum DC current rating of 650mA, a DC resistance of 1.47 Ohms, and a saturation current of 1.27A. Operating within a temperature range of -40°C to 125°C, it is constructed with a ferrite core and is RoHS compliant. Packaged on tape and reel, this component is designed for efficient surface mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton DR127-821-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 650mA |
| DC Current | 650mA |
| DC Resistance (DCR) | 1.47R |
| Depth | 12.5mm |
| Height | 8mm |
| Height - Seated (Max) | 0.315inch |
| Inductance | 820uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max DC Current | 650mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 350 |
| Packaging | Tape and Reel |
| Rated Current-Max | 650mA |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 650mA |
| RoHS Compliant | Yes |
| Saturation Current | 1.27A |
| Self Resonant Frequency | 100kHz |
| Series | DR |
| Series Resistance | 1.47R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.208oz |
| Width | 0.492inch |
| RoHS | Compliant |
