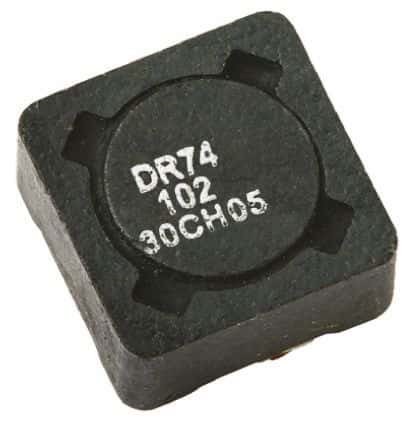

Surface mount fixed inductor featuring a shielded drum core with ferrite material. Offers 22µH inductance with a 20% tolerance, tested at 100kHz. Rated for 1.75A DC current with a maximum saturation current of 2.13A and a low DC resistance of 92.5mΩ. Operating temperature range is -40°C to 125°C, packaged in tape and reel.
PackageNonstandard
Current Rating1.75A
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Eaton DR74-220-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
1.75A
DC Current
1.75A
DC Resistance (DCR)
92.5mR
Depth
7.6mm
Height
4.35mm
Height - Seated (Max)
0.171inch
Inductance
22uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
7.6mm
Max DC Current
2.13A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1100
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
1.75A
Reach SVHC Compliant
No
RMS Current (Irms)
1.75A
RoHS Compliant
Yes
Saturation Current
2.13A
Self Resonant Frequency
100kHz
Series
DR
Series Resistance
92.5mR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.048oz
Width
0.299inch
Compliance
RoHS
Compliant
Datasheet
Eaton DR74-220-R Datasheet
Download the complete datasheet for Eaton DR74-220-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
