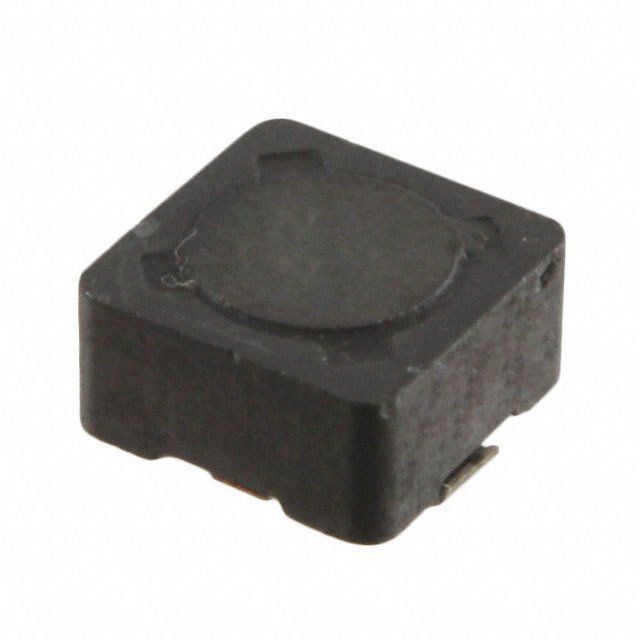

Surface mount shielded drum core inductor with 330nH inductance and 20% tolerance, operating at 100kHz. Features a 6.26A rated current, 18.4A saturation current, and 7.4mΩ DC resistance. Constructed with a ferrite core, this component offers a wide operating temperature range from -40°C to 125°C and is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton DR74-R33-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current | 172mA |
| Current Rating | 6.26A |
| DC Resistance (DCR) | 7.4mR |
| Depth | 7.6mm |
| Height | 4.35mm |
| Height - Seated (Max) | 0.171inch |
| Inductance | 330nH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Max DC Current | 18.4A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1100 |
| Packaging | Tape and Reel |
| Rated Current-Max | 6.26A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 6.26A |
| RoHS Compliant | Yes |
| Saturation Current | 18.4A |
| Self Resonant Frequency | 100kHz |
| Series | DR |
| Series Resistance | 7.4mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.048oz |
| Width | 0.299inch |
| RoHS | Compliant |
