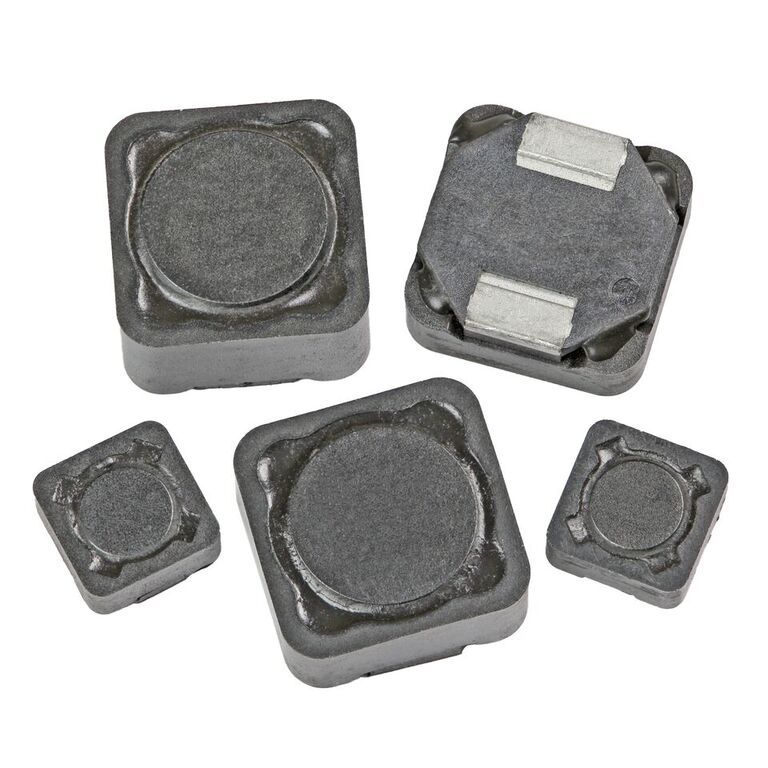

Surface mount fixed inductor featuring a shielded drum core construction. Offers 47µH inductance with a 20% tolerance, tested at 100kHz. Rated for 1.14A DC current and 1.14A RMS current, with a saturation current of 1.37A. Features a low DC resistance of 219mΩ and operates within an automotive temperature range of -40°C to 165°C, meeting AEC-Q200 standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton DRA74-470-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Nonstandard |
| Current | 879mA |
| Current Rating | 1.14A |
| DC Current | 1.14A |
| DC Resistance (DCR) | 219mR |
| Depth | 7.6mm |
| Height | 3.55mm |
| Height - Seated (Max) | 0.171inch |
| Inductance | 47uH |
| Inductance Tolerance | 20% |
| Lead Pitch | 4.6mm |
| Length | 7.6mm |
| Max DC Current | 1.14A |
| Max Operating Temperature | 165°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1100 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.14A |
| RoHS Compliant | Yes |
| Saturation Current | 1.37A |
| Series | DRA |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.016oz |
| Width | 0.299inch |
| RoHS | Compliant |
