Voltage Rating415V
Current Rating25A
MountingDIN Rail
Quick Jump:
Technical Specifications
Eaton FAZ-B25/2 technical specifications.
General
Approvals
UL
Current Rating
25A
Depth
72.6mm
Length
36mm
Mount
DIN Rail
Number of Poles
2
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FAZ
Termination
Screw
Voltage Rating
415V
Voltage Rating (AC)
277V
DC Rated Voltage
125V
Width
84.7mm
Compliance
RoHS
Compliant
Datasheet
Eaton FAZ-B25/2 Datasheet
Download the complete datasheet for Eaton FAZ-B25/2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

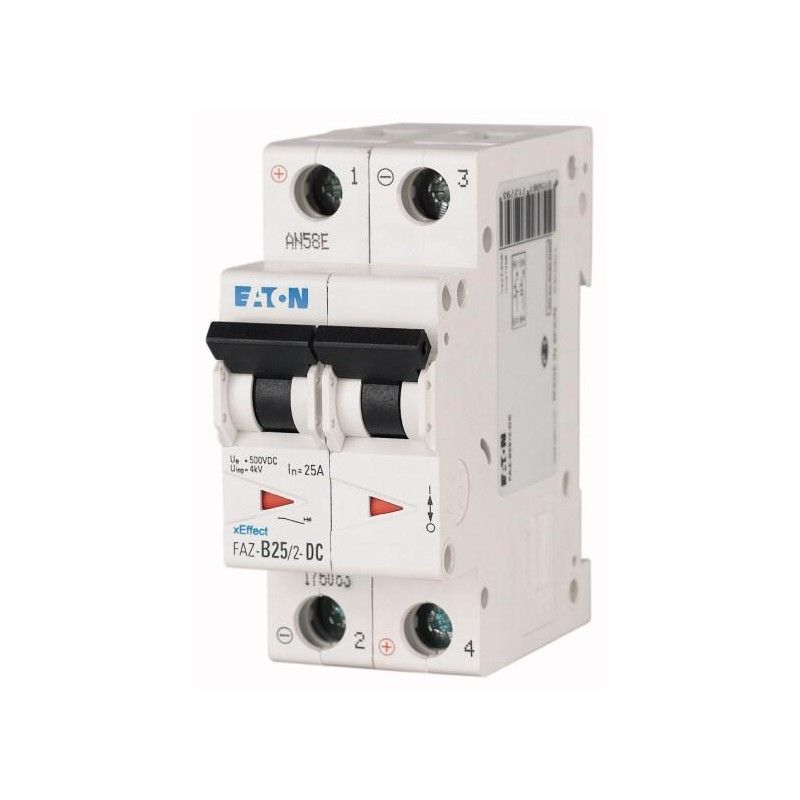

Product Images
