Eaton
FAZ-C25/3

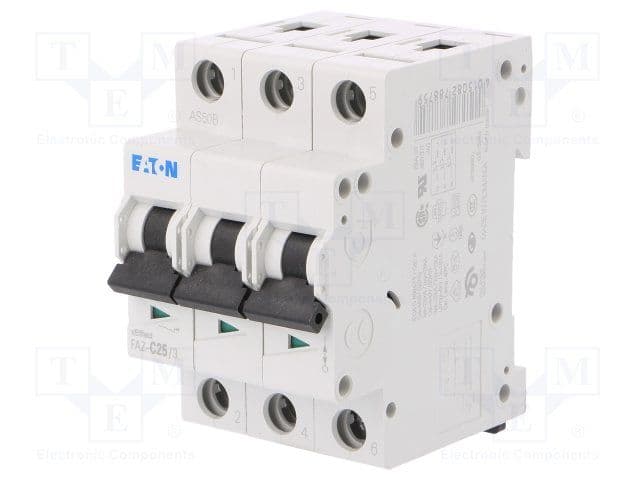

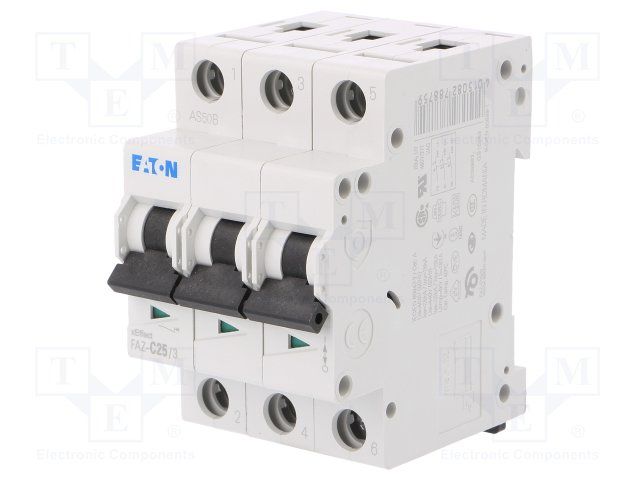

EATON MOELLER FAZ-C25/3 Thermal Magnetic Circuit Breaker, 415 VAC, 48 VDC, 25 A, 3 Pole, DIN Rail
Voltage Rating415V
Current Rating25A
MountingDIN Rail
Quick Jump:
Technical Specifications
Eaton FAZ-C25/3 technical specifications.
General
Approvals
UL
Current Rating
25A
Depth
72.6mm
Length
54mm
Mount
DIN Rail
Number of Poles
3
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FAZ
Termination
Screw
Voltage Rating
415V
Voltage Rating (AC)
415V
DC Rated Voltage
48V
Width
52.5mm
Compliance
RoHS
Compliant
Datasheet
Eaton FAZ-C25/3 Datasheet
Download the complete datasheet for Eaton FAZ-C25/3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

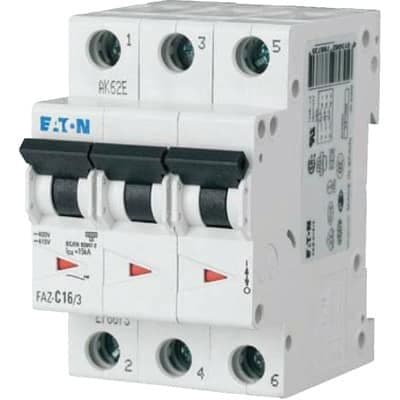

Product Images
