The Eaton FNQ-R-5 is a 600V 5A surface mount fuse holder from the CC-TRON FNQ-R series. It features a time delay blow characteristic and meets UL, CSA, and CE approvals. The holder is designed for surface mount applications and is available in a bulk packaging quantity of 10. The FNQ-R-5 has a diameter of 10.3mm and a length of 38.1mm, with a fuse size of 13/32 X 1-1/2in. It is lead free and compliant with radiation hardening requirements.
Current5A
Storage38.1mm
Voltage Rating600V
Current Rating5A
Quick Jump:
Technical Specifications
Eaton FNQ-R-5 technical specifications.
General
| Approvals | UL, CSA, CE |
| Blow Characteristic | TIME DELAY |
| Current | 5A |
| Current Rating | 5A |
| Diameter | 10.3mm |
| Fuse Current | 5A |
| Fuse Size | 13/32 X 1-1/2in |
| Lead Free | Lead Free |
| Length | 38.1mm |
| Max Voltage Rating (AC) | 600V |
| Mount | Holder, Surface Mount |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | CC-TRON® FNQ-R |
| Size | 38.1mm |
| Type | Electrical |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 600V |
| Working Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Eaton FNQ-R-5 Datasheet
Download the complete datasheet for Eaton FNQ-R-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

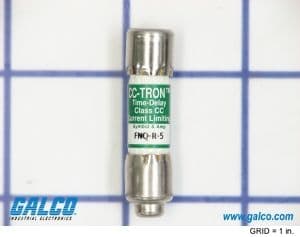

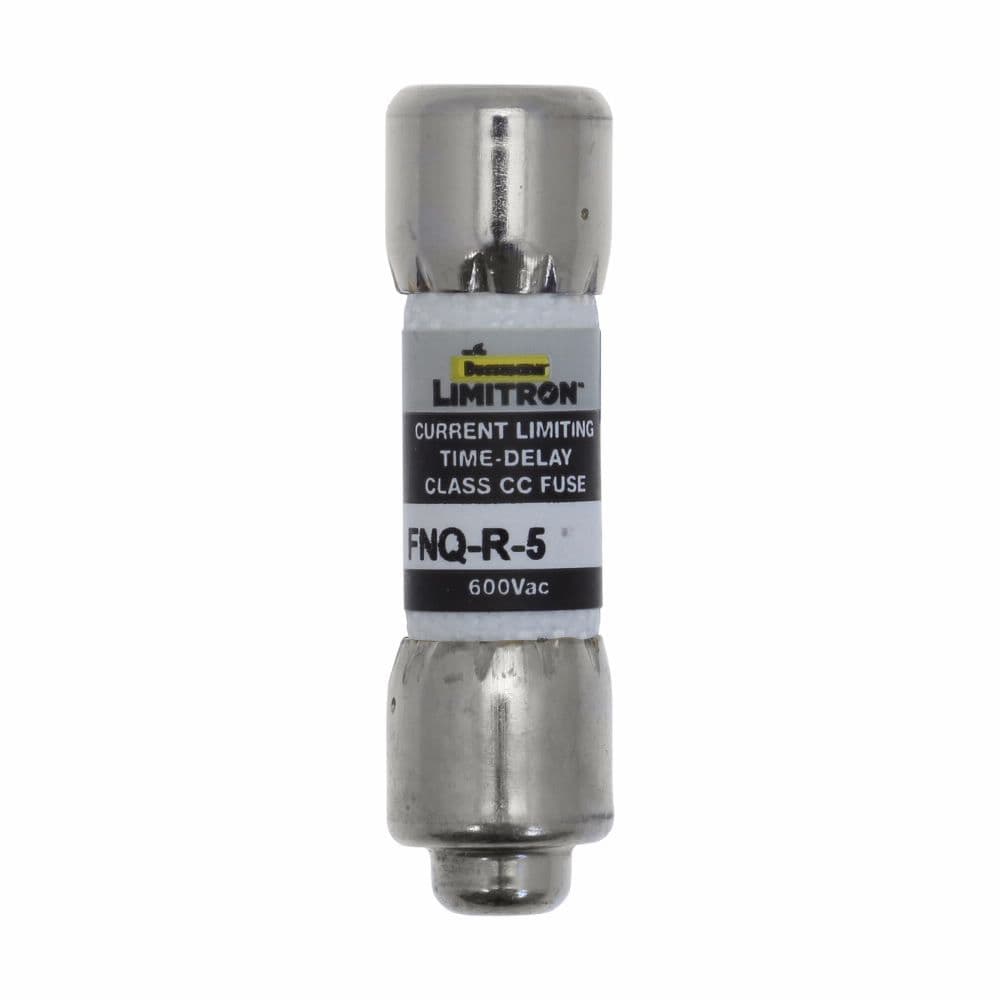

Product Images
