Surface mount fixed inductor featuring a ferrite core with 150nH inductance and 10% tolerance, tested at 100kHz. This wirewound component offers a maximum DC current rating of 53A and a saturation current of 47A, with a low DC resistance of 0.39mR. Operating within a temperature range of -40°C to 125°C, it is provided in tape and reel packaging.
PackageNonstandard
Current Rating53A
MountingSurface Mount
Inductance150nH
Quick Jump:
Technical Specifications
Eaton FP1005R1-R15-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
53A
DC Resistance (DCR)
0.39mR
Depth
7mm
Height
4.95mm
Height - Seated (Max)
0.195inch
Inductance
150nH
Lead Free
Lead Free
Length
10.2mm
Max DC Current
53A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
950
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
53A
RoHS Compliant
Yes
Saturation Current
47A
Self Resonant Frequency
2MHz
Series
FP1005
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
10%
Weight
0.070548oz
Width
0.276inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1005R1-R15-R Datasheet
Download the complete datasheet for Eaton FP1005R1-R15-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

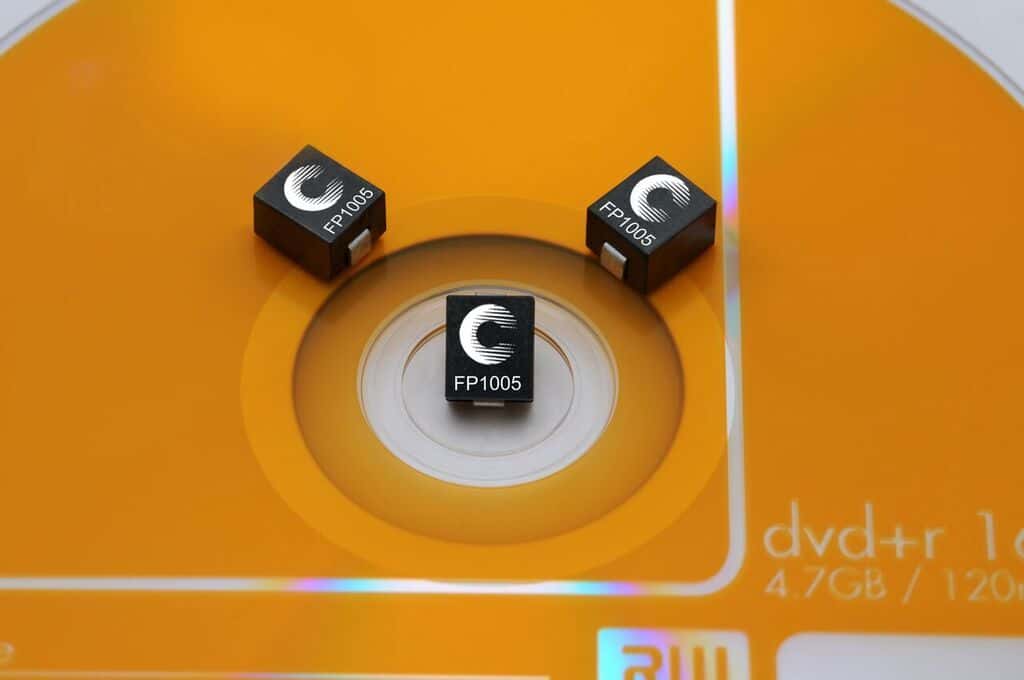

Product Images
