Surface mount fixed inductor featuring a ferrite core, offering 215nH inductance with a 10% tolerance at 100kHz. This wirewound component supports a 60A DC current rating and a 50A saturation current, with a low 0.29mΩ DC resistance. Designed for surface mounting, it operates within a -40°C to 125°C temperature range and is RoHS compliant.
PackageNonstandard
Current Rating60A
MountingSurface Mount
Inductance215nH
Quick Jump:
Technical Specifications
Eaton FP1007R1-R22-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
60A
DC Current
60A
DC Resistance (DCR)
0.29mR
Depth
8mm
Height
6.8mm
Height - Seated (Max)
0.276inch
Inductance
215nH
Lead Free
Lead Free
Length
10.2mm
Max DC Current
50A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
700
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
50A
Self Resonant Frequency
2MHz
Series
FP1007
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
10%
Weight
0.070548oz
Width
0.307inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1007R1-R22-R Datasheet
Download the complete datasheet for Eaton FP1007R1-R22-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

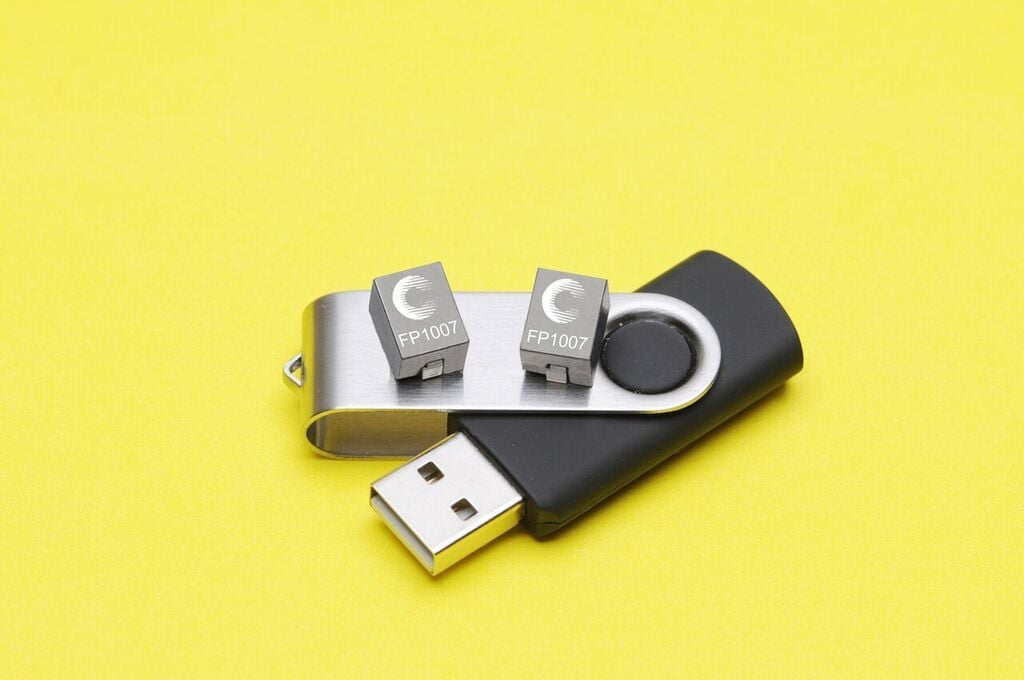

Product Images
