Eaton
FP1206R1-R12-R
Inductor Power Wirewound 0.12uH/0.086uH 10% 100KHz Ferrite 50A 0.00043Ohm DCR T/R
PackageNonstandard
Current Rating50A
MountingSurface Mount
Inductance120nH
Quick Jump:
Technical Specifications
Eaton FP1206R1-R12-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
50A
DC Resistance (DCR)
0.43mR
Depth
8mm
Height
0.236inch
Height - Seated (Max)
0.236inch
Inductance
120nH
Length
0.461inch
Max DC Current
50A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
620
Packaging
Tape and Reel
Radiation Hardening
No
Saturation Current
88A
Series
FLAT-PAC™, FP1206
Shielding
Unshielded
Test Frequency
100kHz
Tolerance
10%
Weight
0.016oz
Width
0.472inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1206R1-R12-R Datasheet
Download the complete datasheet for Eaton FP1206R1-R12-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

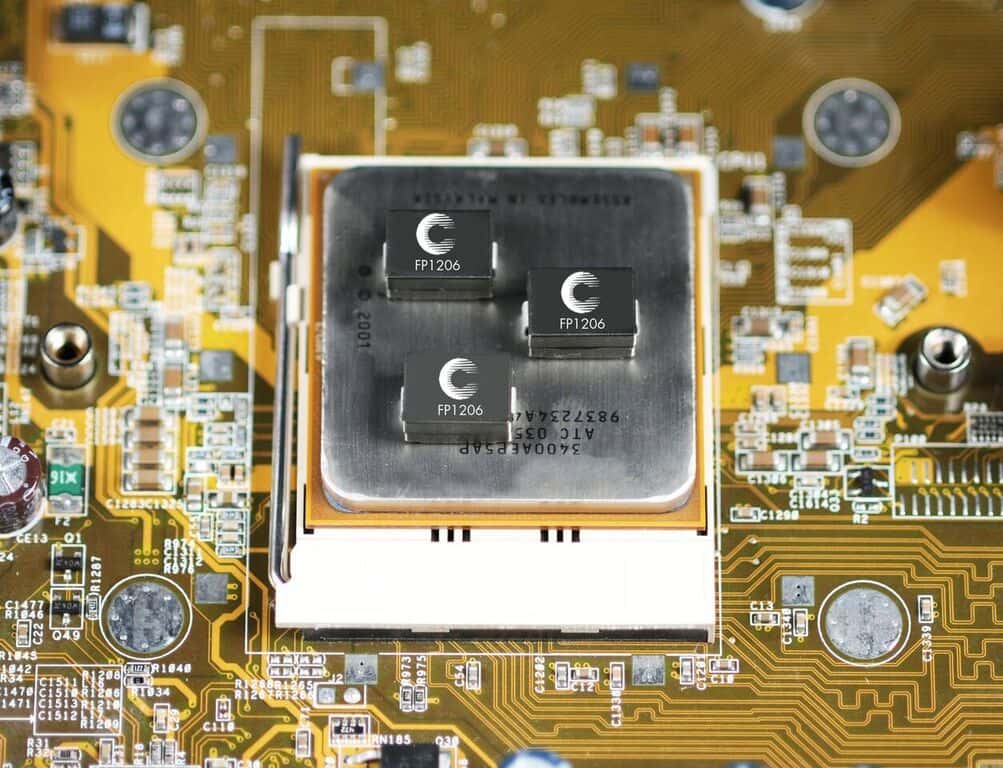

Product Images
