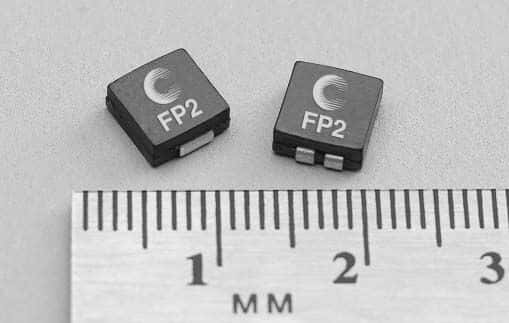

Surface mount fixed inductor featuring a ferrite core, offering 200nH inductance with a 15% tolerance at 1MHz. This wirewound component supports a 37A DC current rating and a 19A saturation current, with a low DC resistance of 0.28mR. Designed for surface mounting with SMD/SMT termination, it operates within a temperature range of -40°C to 125°C and is provided in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton FP2-S200-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Eaton FP2-S200-R technical specifications.
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 37A |
| DC Current | 37A |
| DC Resistance (DCR) | 0.28mR |
| Depth | 6.7mm |
| Height | 5mm |
| Height - Seated (Max) | 0.197inch |
| Inductance | 200nH |
| Inductance Tolerance | 15% |
| Lead Free | Lead Free |
| Length | 7.2mm |
| Max DC Current | 19A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 950 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 19A |
| Series | FLAT-PAC |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 15% |
| Weight | 0.048oz |
| Width | 0.264inch |
| RoHS | Compliant |
