Storage50.8mm
Voltage Rating250V
Current Rating4A
MountingClip, Holder
Quick Jump:
Technical Specifications

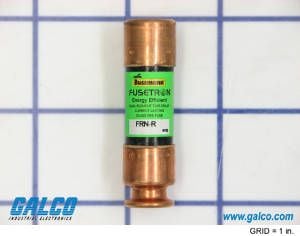

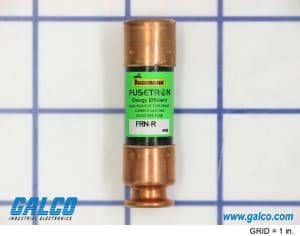

Eaton FRN-R-4 technical specifications.
General
Approvals
UL, CSA, CE
Body Material
Fiberglass
Current Rating
4A
Diameter
0.56inch
Fuse Size
0.56 X 2in
Lead Free
Lead Free
Length
2inch
Max Voltage Rating (AC)
250V
Mount
Clip, Holder
Package Quantity
10
Packaging
Carton
RoHS Compliant
No
Series
Fusetron™ FRN-R
Size
50.8mm
Termination
Clip
Type
Electrical
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
0.8oz
Working Voltage
250V
Compliance
RoHS
Not Compliant
Datasheet
Eaton FRN-R-4 Datasheet
Download the complete datasheet for Eaton FRN-R-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
