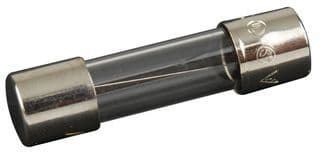

The GMC-1A fuse features a time delay blow characteristic and is constructed with a glass body. It has a current rating of 1A and a maximum voltage rating of 250V AC. The fuse is available in a 5 x 20mm size and is terminated with a clip. It is packaged in bulk quantities of 5.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton GMC-1A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Blow Characteristic | TIME DELAY |
| Body Material | Glass |
| Current Rating | 1A |
| Diameter | 5.2mm |
| Fuse Current | 1A |
| Fuse Size | 5 x 20mm |
| Length | 20mm |
| Max Voltage Rating (AC) | 250V |
| Mount | Holder |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 156mR |
| RoHS Compliant | No |
| Series | GMC |
| Termination | Clip |
| Voltage Rating (AC) | 250V |
| Weight | 0.038801oz |
| RoHS | Not Compliant |
