Surface mount fixed inductor featuring a 3.6µH inductance with a 15% tolerance, designed for power applications. This wirewound component utilizes a ferrite core and offers a high current rating of 16.76A, with a low DC resistance of 3.5mΩ. Operating across a temperature range of -40°C to 125°C, it is supplied in tape and reel packaging.
PackageNonstandard
Current Rating16.76A
MountingSurface Mount
Inductance3.6uH
Quick Jump:
Technical Specifications
Eaton HC1-3R6-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 16.76A |
| DC Resistance (DCR) | 3.5mR |
| Depth | 13mm |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Inductance | 3.6uH |
| Inductance Tolerance | 15% |
| Length | 13mm |
| Max DC Current | 16.76A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 16.76A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 16.76A |
| RoHS Compliant | Yes |
| Saturation Current | 13.4A |
| Series | HC1 |
| Series Resistance | 3.5mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 300kHz |
| Tolerance | 15% |
| Weight | 0.24oz |
| Width | 0.512inch |
Compliance
| RoHS | Compliant |
Datasheet
Eaton HC1-3R6-R Datasheet
Download the complete datasheet for Eaton HC1-3R6-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

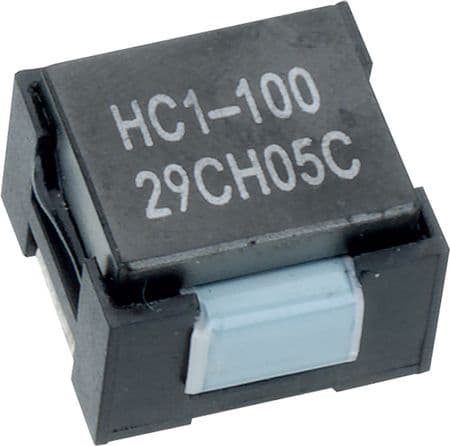

Product Images
