Surface mount fixed inductor featuring a ferrite core, offering 570nH inductance with a 15% tolerance at 300kHz. This wirewound component supports a maximum DC current of 37.83A and a saturation current of 33.4A, with a low DC resistance of 0.68mR. Operating within a temperature range of -40°C to 125°C, it is supplied on tape and reel.
PackageNonstandard
Current Rating37.83A
MountingSurface Mount
Inductance570nH
Quick Jump:
Technical Specifications
Eaton HC1-R57-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 37.83A |
| DC Resistance (DCR) | 0.68mR |
| Depth | 13mm |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Inductance | 570nH |
| Inductance Tolerance | 15% |
| Lead Free | Lead Free |
| Length | 13mm |
| Max DC Current | 37.83A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 37.83A |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 37.83A |
| Saturation Current | 33.4A |
| Series | HC1 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 300kHz |
| Tolerance | 15% |
| Weight | 0.256oz |
| Width | 0.512inch |
Compliance
| RoHS | Compliant |
Datasheet
Eaton HC1-R57-R Datasheet
Download the complete datasheet for Eaton HC1-R57-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

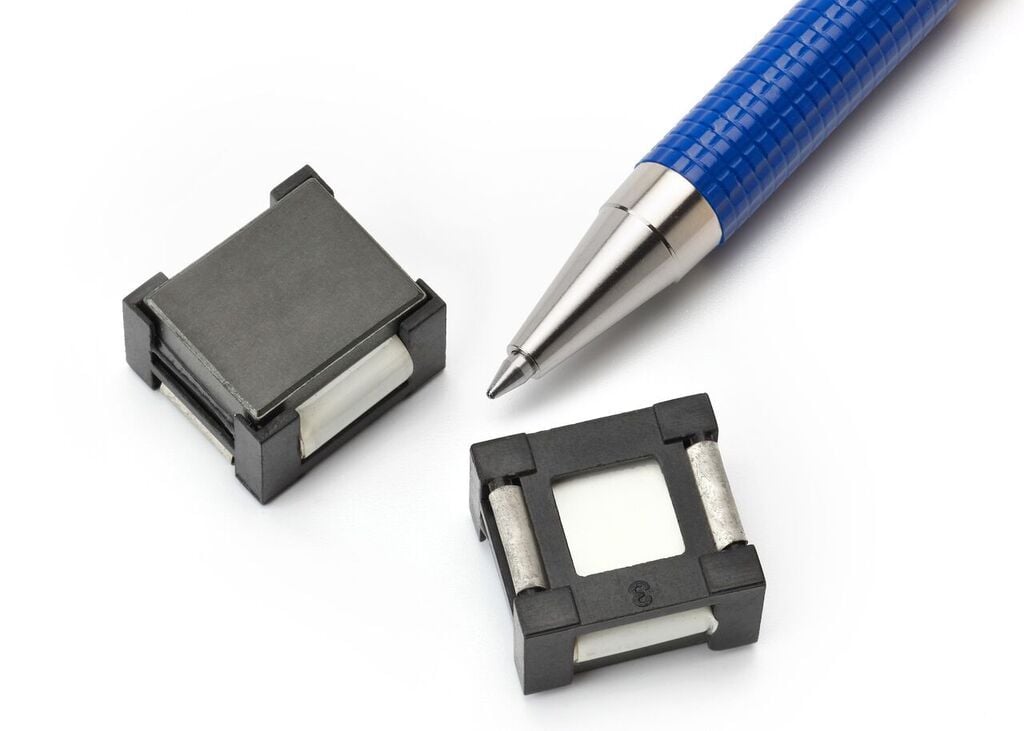

Product Images
