Surface mount power wirewound inductor with 1uH inductance and 20% tolerance, designed for 300kHz operation. Features a ferrite core, 33A rated current, and 42.5A saturation current. DC resistance is 1.3mOhm, with a maximum operating temperature of 85°C and a minimum of -40°C. Packaged in tape and reel, this unshielded component is lead-free and RoHS compliant.
PackageNonstandard
Current Rating33A
MountingSurface Mount
Inductance1uH
Quick Jump:
Technical Specifications
Eaton HC2LP-1R0-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 33A |
| DC Resistance (DCR) | 1.3mR |
| Depth | 19.2mm |
| Height | 11.18mm |
| Height - Seated (Max) | 0.44inch |
| Inductance | 1uH |
| Lead Free | Lead Free |
| Length | 19.2mm |
| Max DC Current | 42.5A |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 33A |
| RoHS Compliant | Yes |
| Saturation Current | 42.5A |
| Series | HC2LP |
| Series Resistance | 4.6mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 300kHz |
| Tolerance | 20% |
| Weight | 0.608oz |
| Width | 0.755inch |
Compliance
| RoHS | Compliant |
Datasheet
Eaton HC2LP-1R0-R Datasheet
Download the complete datasheet for Eaton HC2LP-1R0-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

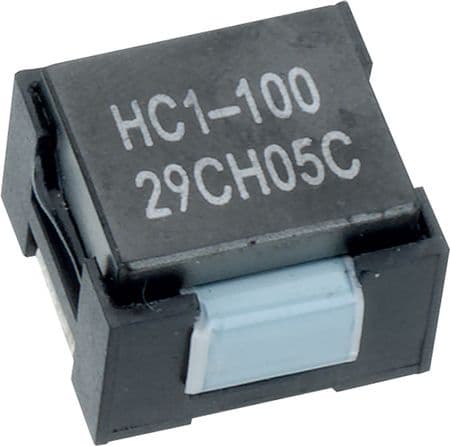

Product Images
