Surface mount fixed inductor featuring a 3.3µH inductance with a 15% tolerance, tested at 100kHz. This wirewound component offers a 14.3A current rating and a low DC resistance of 4.87mΩ. Designed for demanding applications, it operates within a temperature range of -40°C to 155°C and boasts a maximum DC current of 22A. The ferrite core and unshielded construction are housed in a tape and reel package for efficient assembly.
PackageNonstandard
Current Rating14.3A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Eaton HC9-3R3-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
14.3A
DC Resistance (DCR)
4.87mR
Depth
13.1mm
Height
7.5mm
Height - Seated (Max)
0.295inch
Inductance
3.3uH
Lead Free
Lead Free
Length
0.555inch
Max DC Current
22A
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
450
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
22A
Series
HC9
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
15%
Weight
0.256oz
Width
0.515inch
Compliance
RoHS
Compliant
Datasheet
Eaton HC9-3R3-R Datasheet
Download the complete datasheet for Eaton HC9-3R3-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

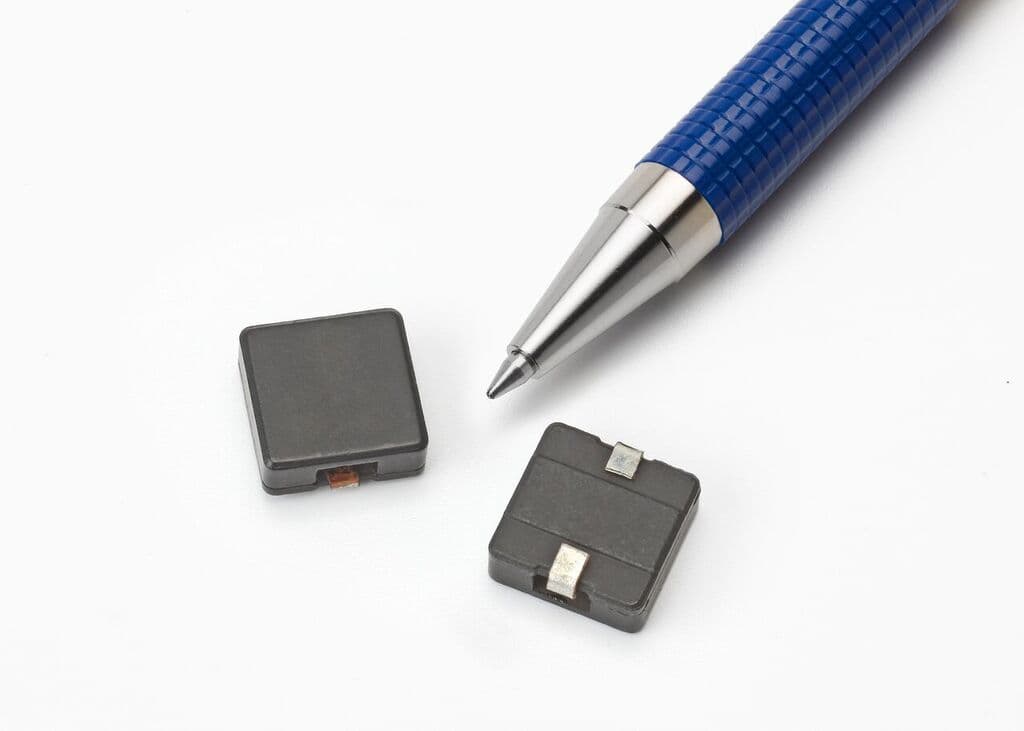

Product Images
