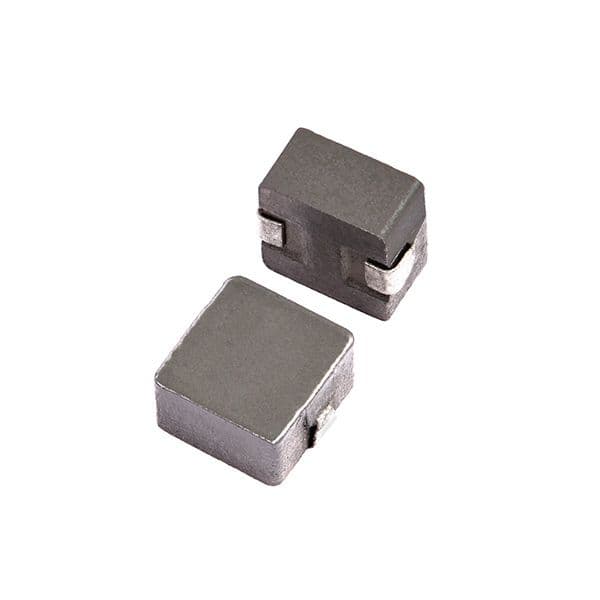

Surface mount shielded wirewound fixed inductor with 1µH inductance and 20% tolerance, tested at 100kHz. Features a powdered iron core, 10.1A rated current, and 8.5A saturation current. DC resistance is 11.44mΩ, with operating temperatures from -55°C to 125°C. Packaged in a 2020 (5050 metric) case, this RoHS compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton HCM0503-1R0-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 2020 |
| Case Code (Metric) | 5050 |
| Package/Case | 2020 |
| Core Material | Ferrite |
| Current Rating | 10.1A |
| DC Resistance (DCR) | 11.44mR |
| Depth | 5.3mm |
| Height | 3mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 1uH |
| Lead Free | Lead Free |
| Length | 0.203inch |
| Max DC Current | 8.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 10.1A |
| RoHS Compliant | Yes |
| Saturation Current | 8.5A |
| Series | HCM0503 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.016oz |
| Width | 0.201inch |
| RoHS | Compliant |
