Inline fuseholder for 3AG, 1-1/4" L x 1/4" Dia fuses, featuring a 30A current rating and 32V voltage rating. Constructed with a white thermoplastic body and copper contacts with tin plating, this illuminated, single-pole, single-circuit holder offers a wide operating temperature range from -40°C to 150°C. Designed for free-hanging mounting with crimp termination, it boasts a UL94 HB flammability rating.
Voltage32V
Voltage Rating32V
Current Rating30A
MountingFree Hanging
Quick Jump:
Technical Specifications
Eaton HFB-R technical specifications.
General
| Body Material | Thermoplastic |
| Color | White |
| Contact Material | Copper |
| Current Rating | 30A |
| Flammability Rating | UL94 HB |
| Fuse Current | 30A |
| Fuse Size | 3AG, 1-1/4" L x 1/4" Dia (31.8mm x 6.35mm) |
| Illumination Type | Illuminated |
| Material | Copper, Tin |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | HFB |
| Termination | Crimp |
| Voltage | 32V |
| Voltage Rating | 32V |
| Voltage Rating (AC) | 32V |
| DC Rated Voltage | 32V |
| Weight | 0.64oz |
Compliance
| RoHS | Compliant |
Datasheet
Eaton HFB-R Datasheet
Download the complete datasheet for Eaton HFB-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

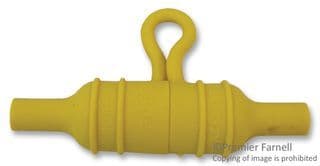

Product Images
