Technical Specifications
Eaton JKS-30 technical specifications.
General
| Approvals | UL, CSA, CE |
| Current Rating | 30A |
| Diameter | 0.81inch |
| Fuse Current | 30A |
| Fuse Size | 2.25 X 0.81in |
| Lead Free | Lead Free |
| Length | 2.25inch |
| Max Voltage Rating (AC) | 600V |
| Mount | Holder, Stud, Surface Mount |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | Limitron™ JKS |
| Size | 57.15mm |
| Termination | Clip |
| Type | Electrical |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 200V |
| Weight | 1.68oz |
| Working Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Eaton JKS-30 Datasheet
Download the complete datasheet for Eaton JKS-30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

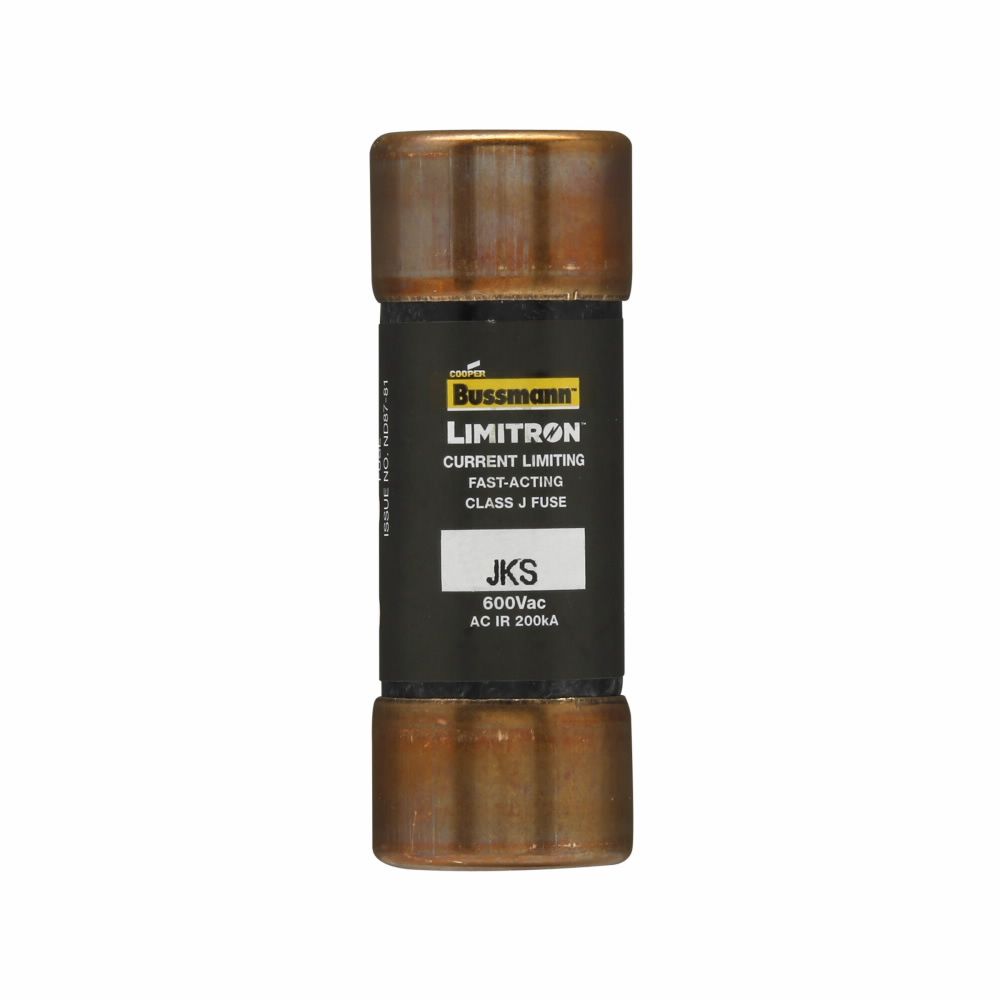

Product Images
