1 Farad radial supercapacitor, 5.5V DC rated voltage, with 30 Ohm ESR. Features a stacked coin package measuring 21.5mm diameter and 7.5mm height, with a 5mm lead pitch for through-hole mounting. Operating temperature range from -25°C to 70°C, offering 1000 hours of life. This RoHS compliant component is supplied in bulk packaging.
PackageRadial
Capacitance1F
Voltage Rating5.5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Eaton KR-5R5C105-R technical specifications.
General
| Capacitance | 1F |
| Package/Case | Radial |
| Diameter | 21.5mm |
| ESR (Equivalent Series Resistance) | 30R |
| Height | 7.5mm |
| Height - Seated (Max) | 0.295inch |
| Lead Diameter | 0.4mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 7.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerStor KR |
| Termination | Radial |
| Tolerance | 80% |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| Weight | 0.208oz |
Compliance
| RoHS | Compliant |
Datasheet
Eaton KR-5R5C105-R Datasheet
Download the complete datasheet for Eaton KR-5R5C105-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

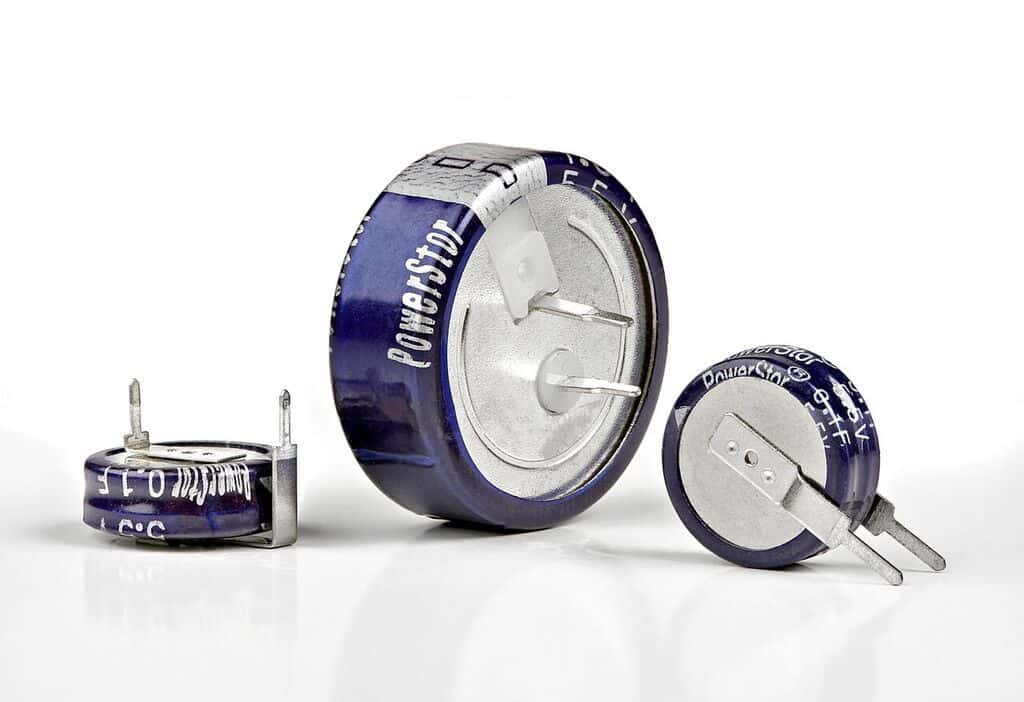

Product Images
