Stacked coin supercapacitor, 0.22F capacitance, 5.5V voltage rating. Features 75 Ohm ESR, radial termination, and through-hole mounting. Operates from -25°C to 70°C with a 1000-hour life rating. Dimensions include 11.5mm diameter and 5mm height.
PackageRadial
Capacitance220mF
Voltage Rating5.5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Eaton KR-5R5H224-R technical specifications.
General
| Capacitance | 220mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 11.5mm |
| Diameter | 11.5mm |
| ESR (Equivalent Series Resistance) | 75R |
| Height | 5mm |
| Height - Seated (Max) | 0.197inch |
| Lead Diameter | 0.2mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 12.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Orientation | Horizontal |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerStor KR |
| Termination | Radial |
| Tolerance | 80% |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| Weight | 0.048oz |
Compliance
| RoHS | Compliant |
Datasheet
Eaton KR-5R5H224-R Datasheet
Download the complete datasheet for Eaton KR-5R5H224-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

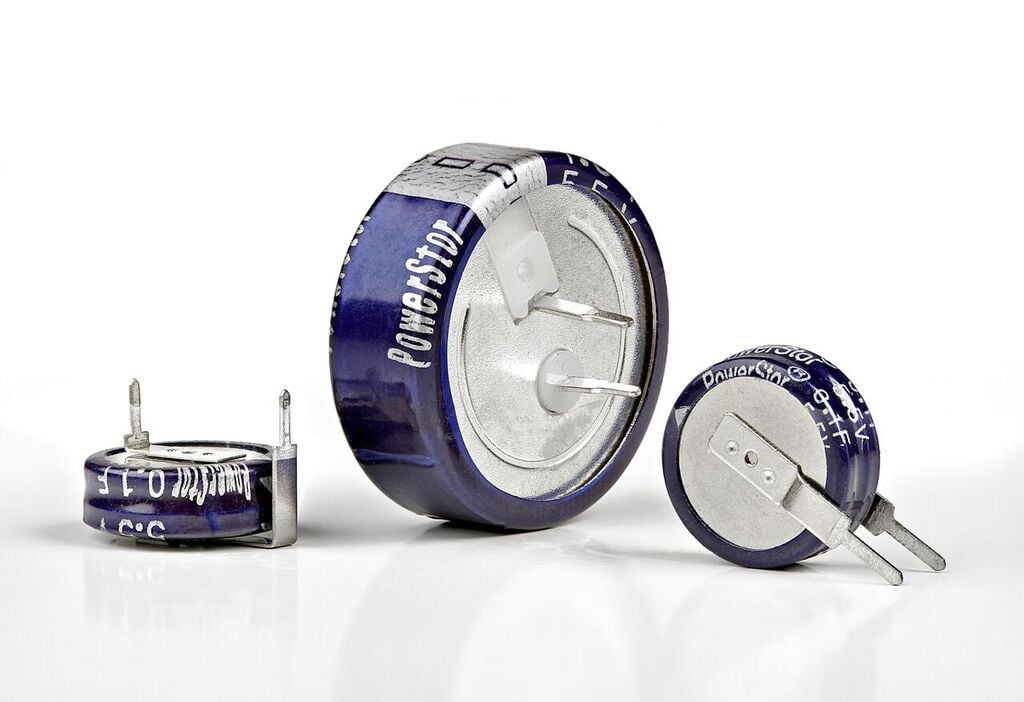

Product Images
