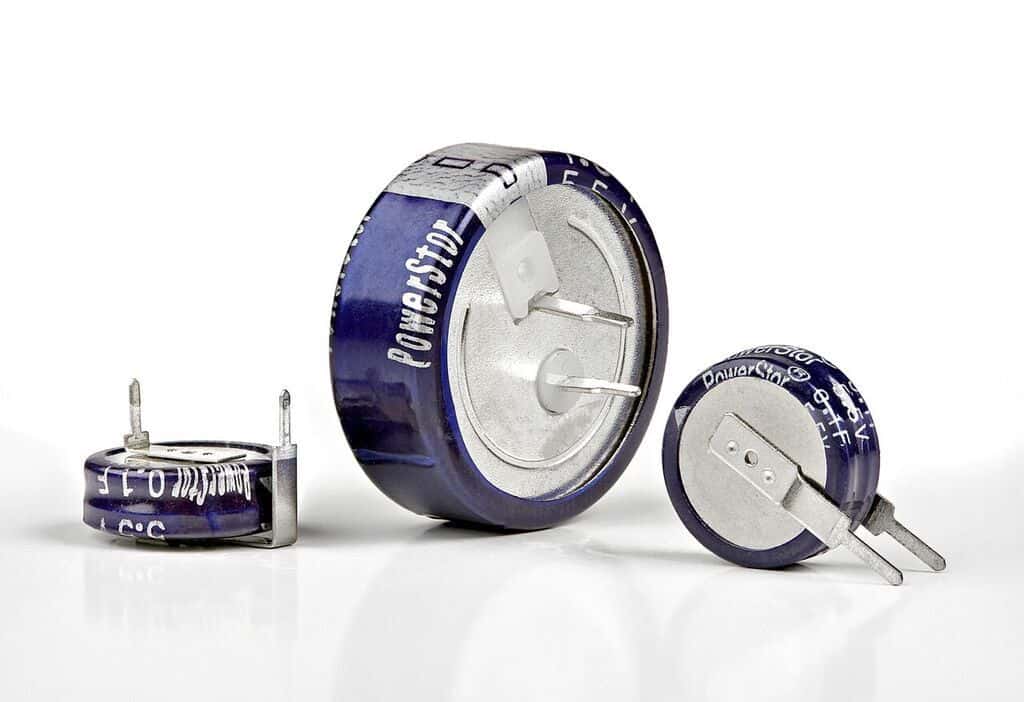

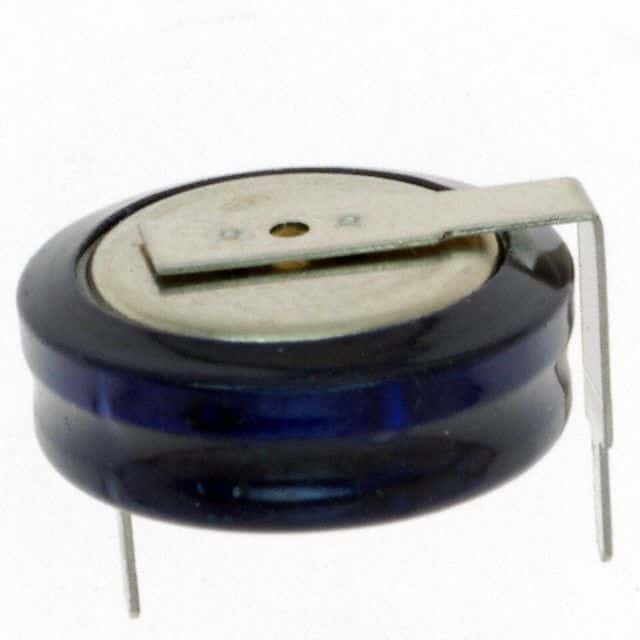

Supercapacitor, 470mF capacitance, 5.5V DC rated voltage, and 80% tolerance. Features 50 Ohm ESR, 1000-hour life at 70°C, and operating temperatures from -25°C to 70°C. Radial termination with a 10mm lead pitch, housed in a stacked coin package measuring 11.5mm diameter and 11.5mm depth. Through-hole mounting and lead-free construction.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton KR-5R5H474-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 470mF |
| Package/Case | Radial |
| Depth | 11.5mm |
| Diameter | 11.5mm |
| ESR (Equivalent Series Resistance) | 50R |
| Height | 5mm |
| Height - Seated (Max) | 0.197inch |
| Lead Diameter | 0.2mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 12.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Orientation | Horizontal |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerStor KR |
| Termination | Radial |
| Tolerance | 80% |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| Weight | 0.048oz |
| RoHS | Compliant |
