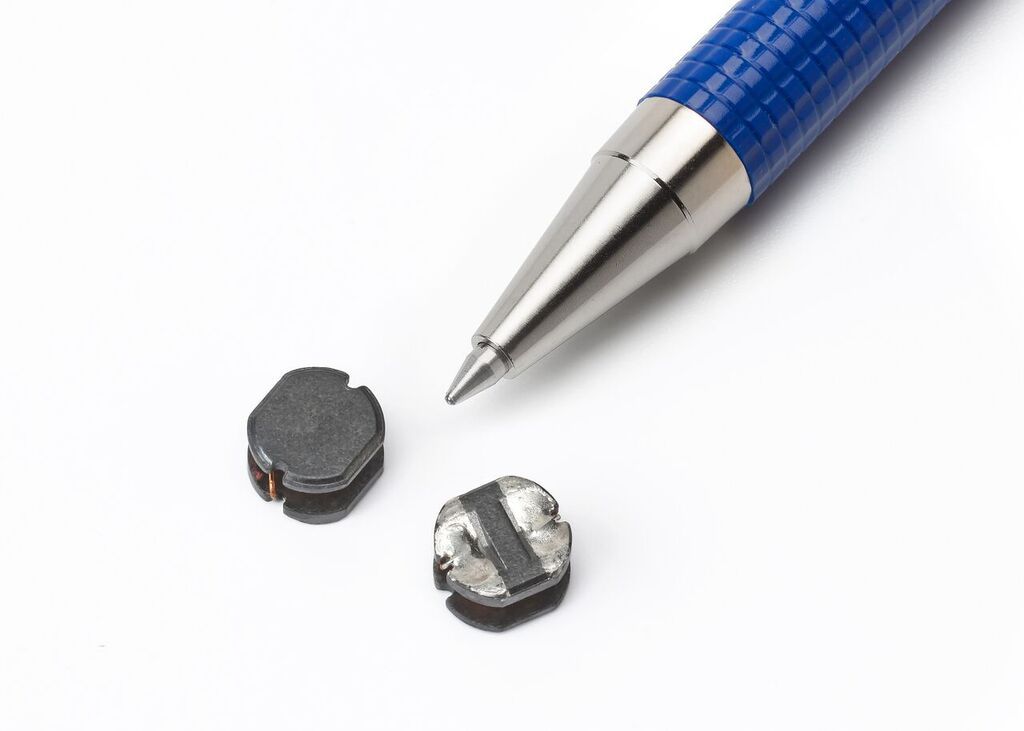

Surface mount fixed inductor featuring a ferrite drum core. Offers 120µH inductance with a 20% tolerance, tested at 100kHz. Rated for 1.43A current with a DC resistance of 0.47Ω. Operates within a -40°C to 125°C temperature range and is supplied in tape and reel packaging.
PackageNonstandard
Resistance0.47R
Current Rating1.43A
MountingSurface Mount
Quick Jump:
Technical Specifications
Eaton LD2-121-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
1.43A
DC Resistance (DCR)
470mR
Depth
7.3mm
Height
0.196inch
Height - Seated (Max)
0.197inch
Inductance
120uH
Lead Free
Lead Free
Length
0.307inch
Max DC Current
1.09A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Resistance
0.47R
RoHS Compliant
Yes
Saturation Current
1.09A
Series
LD
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.016oz
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Eaton LD2-121-R Datasheet
Download the complete datasheet for Eaton LD2-121-R to view detailed technical specifications.
