Technical Specifications
Eaton LPJ-1SP technical specifications.
General
| Approvals | UL, CSA, CE |
| Blow Characteristic | TIME DELAY |
| Body Diameter | 20.57mm |
| Body Height | 57.15mm |
| Current Rating | 1A |
| Diameter | 0.81inch |
| Fuse Current | 1A |
| Fuse Size | 0.81 X 2.25in |
| Length | 2.25inch |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 300V |
| Mount | Holder |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LOW-PEAK™ LPJ |
| Termination | Clip |
| Type | Electrical |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 300V |
| Weight | 1.52oz |
Compliance
| RoHS | Compliant |
Datasheet
Eaton LPJ-1SP Datasheet
Download the complete datasheet for Eaton LPJ-1SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

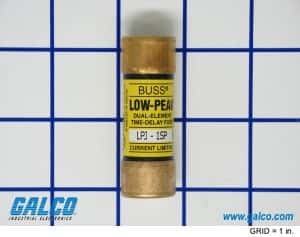

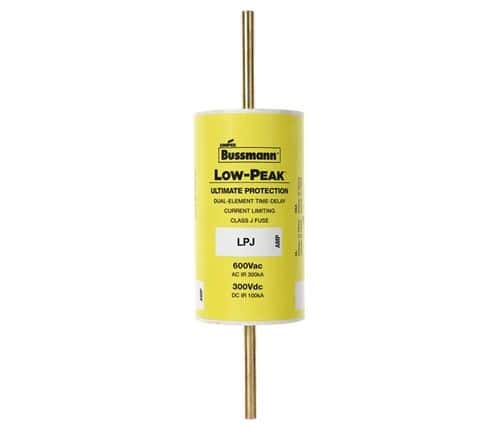

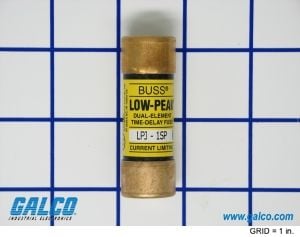

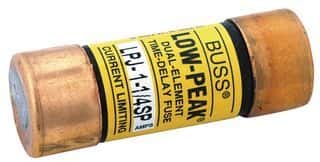

Product Images
