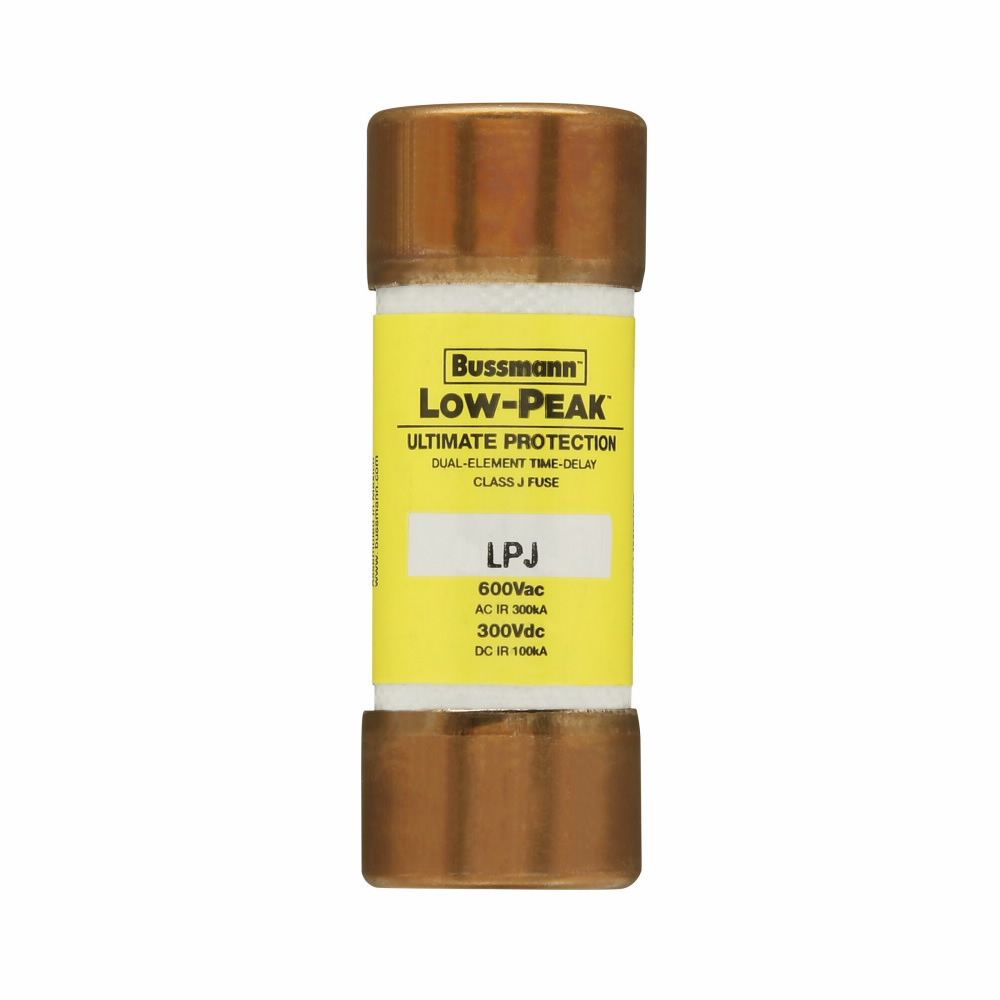

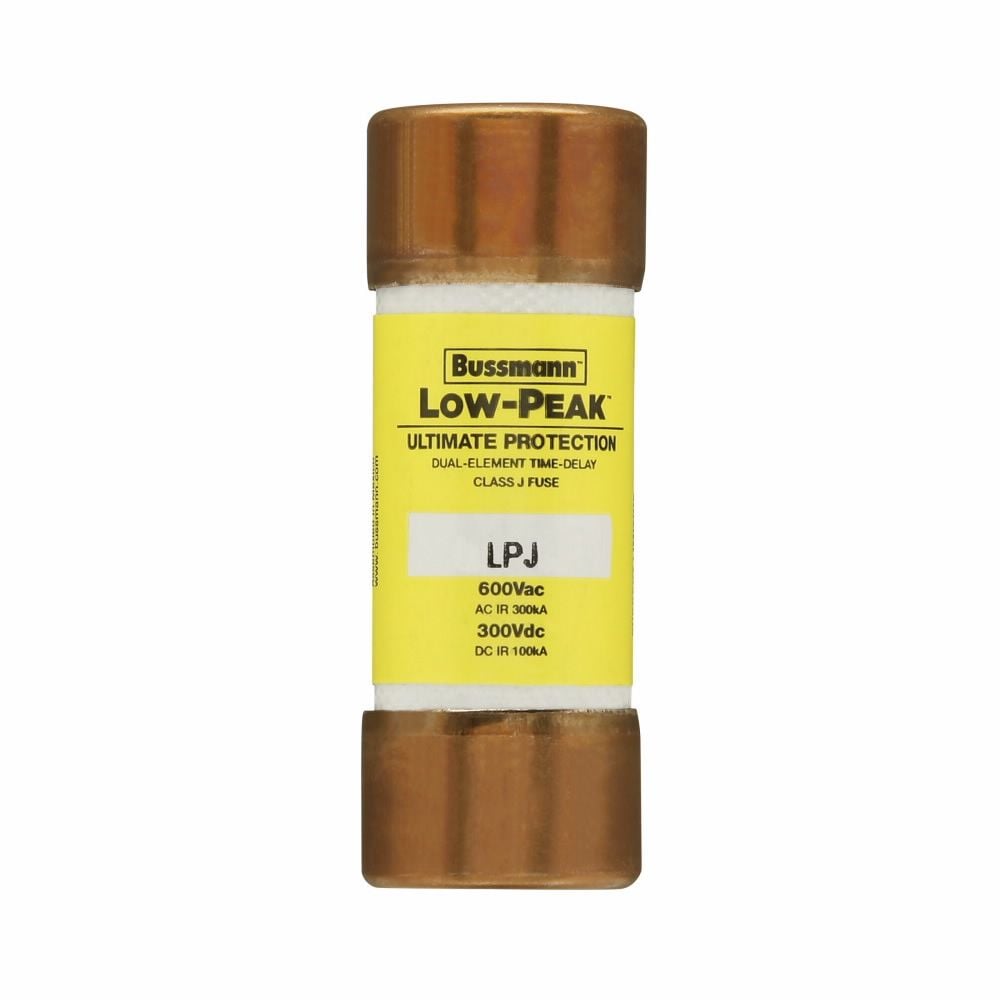

Time delay fuse, 20A current rating, 600V AC maximum voltage, 300V DC rated voltage. Cartridge fuse with dimensions of 20.57 x 57.15mm (0.81 x 2.25 inches). Features clip termination and is designed for holder mounting. Approvals include UL, CSA, and CE. Lead-free construction.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton LPJ-20SP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Eaton LPJ-20SP technical specifications.
| Approvals | UL, CSA, CE |
| Blow Characteristic | TIME DELAY |
| Color | Yellow |
| Current Rating | 20A |
| Diameter | 0.81inch |
| Fuse Current | 20A |
| Fuse Size | 0.81 X 2.25in |
| Lead Free | Lead Free |
| Length | 2.25inch |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 300V |
| Mount | Clip, Holder |
| Package Quantity | 10 |
| Packaging | Carton |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | LPJ-SP |
| Size | 57.15mm |
| Termination | Clip |
| Type | Electrical |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 300V |
| Weight | 1.76oz |
| Working Voltage | 600V |
| RoHS | Compliant |
