Time delay electrical fuse, 3A current rating, 600VAC and 300VDC voltage ratings. Features a 300,000A interrupting rating, 20.57mm body diameter, and 57.15mm body length. Designed for inline or holder mounting with clip termination. RoHS compliant and UL, CSA, CE approved.
Storage57.15mm
Voltage Rating600V
Current Rating3A
MountingHolder, Clip
Quick Jump:
Technical Specifications
Eaton LPJ-3SP technical specifications.
General
| Approvals | UL, CSA, CE |
| Blow Characteristic | TIME DELAY |
| Body Diameter | 20.57mm |
| Body Length | 57.15mm |
| Color | Yellow |
| Current Rating | 3A |
| Diameter | 0.81inch |
| Fuse Current | 3A |
| Fuse Size | 0.81 X 2.25in |
| Lead Free | Lead Free |
| Length | 2.25inch |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 300V |
| Mount | Holder, Clip |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LOW-PEAK™ LPJ |
| Size | 57.15mm |
| Termination | Clip |
| Type | Electrical |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 300V |
| Weight | 1.44oz |
| Working Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Eaton LPJ-3SP Datasheet
Download the complete datasheet for Eaton LPJ-3SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

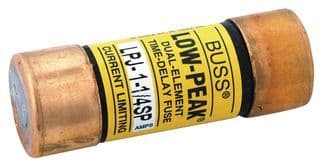

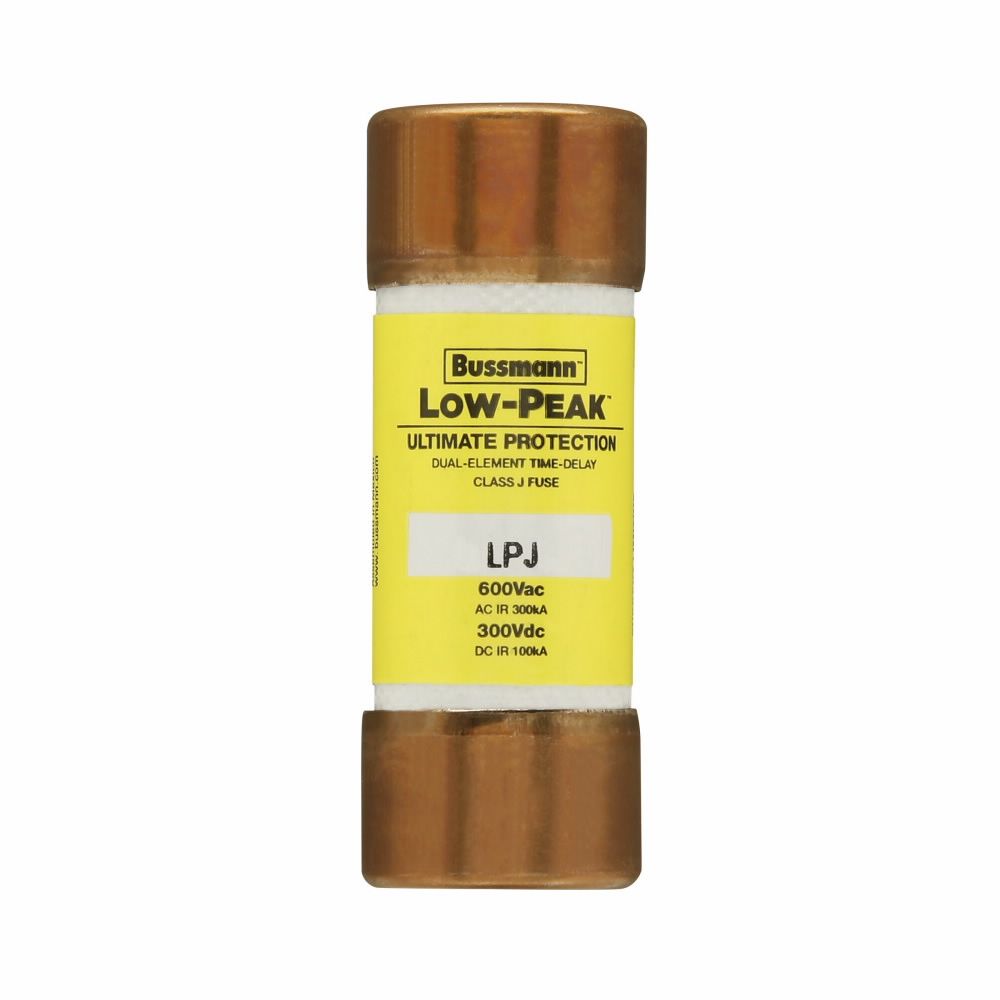

Product Images
