The Eaton RMQ Titan M22-PV/K11 is a SPDT/DPST panel switch with a 6A switching current rating and IP66 rating for environmental protection. It has a 22mm size and a red color. The switch features screw termination for secure mounting. It is not Reach SVHC compliant.
Storage22mm
MountingPanel
Quick Jump:
Technical Specifications
Eaton M22-PV/K11 technical specifications.
General
| Color | Red |
| Head Diameter | 30mm |
| Mount | Panel |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | RMQ Titan |
| Size | 22mm |
| Switching Current | 6A |
| Termination | Screw |
| Throw Configuration | SPDT, DPST |
Compliance
| RoHS | Compliant |
Datasheet
Eaton M22-PV/K11 Datasheet
Download the complete datasheet for Eaton M22-PV/K11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

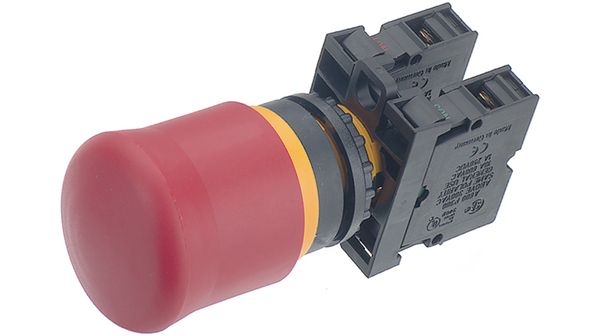

Product Images
