Technical Specifications
Eaton M22-R10K technical specifications.
General
| Height | 29.2mm |
| Lead Length | 250m |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Output | MONO |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Taper | Linear |
| Termination | Screw |
| Tolerance | 10% |
| Type | Potentiometer |
| DC Rated Voltage | 44.7V |
Compliance
| RoHS | Compliant |
Datasheet
Eaton M22-R10K Datasheet
Download the complete datasheet for Eaton M22-R10K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

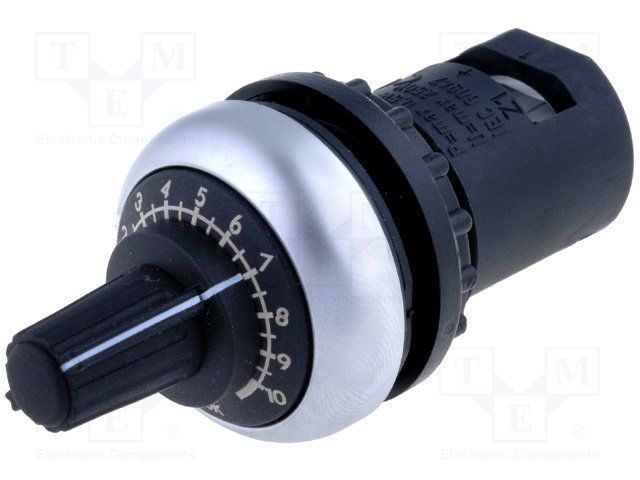

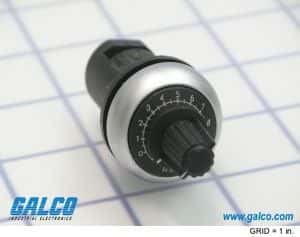

Product Images
