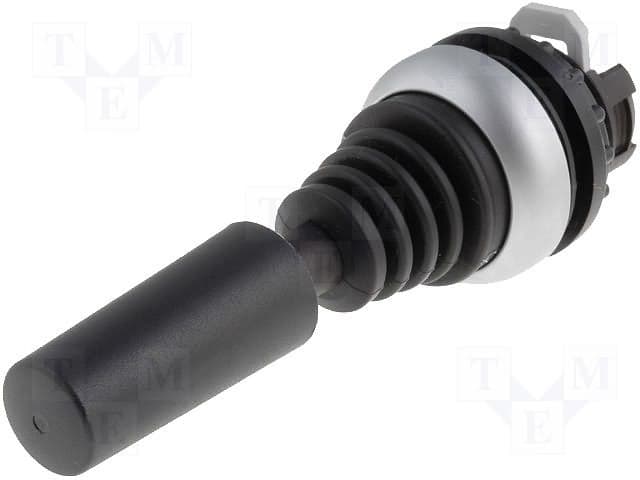

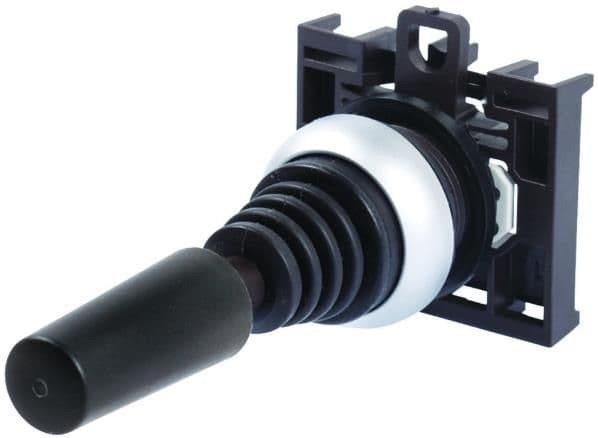

The Eaton M22-WJ2V is a 22mm panel mount joystick switch with a plastic body and screw termination. It has an operating temperature range of -25°C to 70°C and is rated for 6A of switching current. The switch is IP66 rated and has a size of 22mm. It is part of the M22 series and is not Reach SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton M22-WJ2V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Eaton M22-WJ2V technical specifications.
| Actuator Type | Joystick |
| Body Material | Plastic |
| Description | VERTICAL |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | M22 |
| Size | 22mm |
| Switching Current | 6A |
| Termination | Screw |
| RoHS | Compliant |
