Technical Specifications
Eaton M22-WJ4 technical specifications.
General
| Actuator Type | Joystick |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Axes | 4 |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | RMQ-Titan |
| Size | 22mm |
| Switching Current | 6A |
| Termination | Screw |
Compliance
| RoHS | Compliant |
Datasheet
Eaton M22-WJ4 Datasheet
Download the complete datasheet for Eaton M22-WJ4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

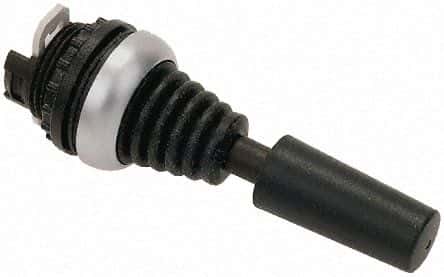

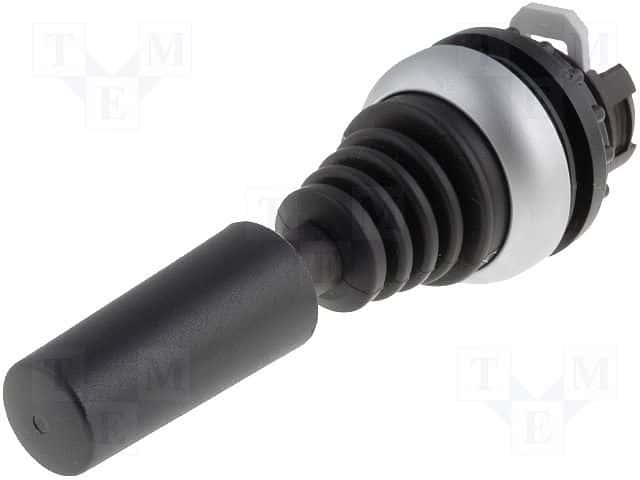

Product Images
