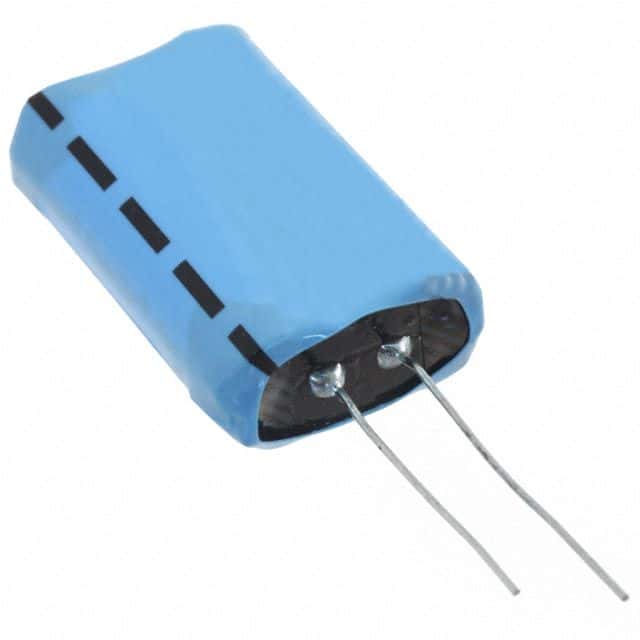

High voltage electric double layer capacitor with 5V DC rated voltage and 3,000,000µF capacitance. Features radial leaded, through-hole mounting with a 5.3mm lead pitch and 0.6mm lead diameter. Offers 70mΩ ESR, 20µA leakage current, and operates within a -40°C to 60°C temperature range. This RoHS compliant component is halogen-free and designed for demanding applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton PM-5R0H305-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 3F |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 32.5mm |
| ESR (Equivalent Series Resistance) | 70mR |
| Height | 10.5mm |
| Height - Seated (Max) | 0.433inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5.3mm |
| Leakage Current | 20uA |
| Length | 1.28inch |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Orientation | Horizontal |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | PowerStor PM |
| Termination | Radial |
| Tolerance | 80% |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Weight | 0.336oz |
| Width | 0.839inch |
| RoHS | Compliant |
